Yuexi ZJC6660UBEV Electric city bus (#291)

Yuexi electric city bus ZJC6660UBEV (batch #291) is made in China by Hangzhou Yuexi Bus Manufacturing Co., Ltd. The company is located in Hangzhou, in Zhejiang Province, China.

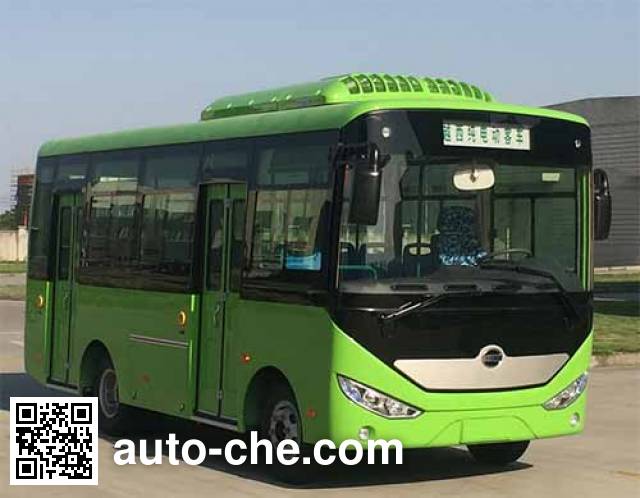

Yuexi ZJC6660UBEV electric city bus

ZJC6660UBEV

Yuexi ZJC6660UBEV electric city bus Yuexi ZJC6660UBEV electric city bus Yuexi ZJC6660UBEV electric city bus Yuexi ZJC6660UBEV electric city bus
Overview
ModelZJC6660UBEV
Brand NameYuexi
Bulletin#291
Type of vehicleElectric city bus
VIN
  • LA91A4AF×××ZJZ×××
  • LA92A4AF×××ZJZ×××
Country of originChina
Manufacturer Profile
Manufacturer
Brand
Type of manufacturerBus manufacturer
CityHangzhou
Province (Region)Zhejiang Province
CountryChina
Number of vehicles*73 models
(217 items total)
* A number of models manufactured by Hangzhou Yuexi Bus Manufacturing Co., Ltd found in Auto-che.com vehicle database
Technical specifications
#Engine modelEngine displacementEngine powerEngine manufacturer
1TZ335XS001 cc100 kW136 hpTianjin Kesite Automotive Technology Co., Ltd.
Performance
Fuelonly electric power (EV)
Maximum speed69 km/h43 mph
ABShave
Capacity
Passenger capacity (including driver)38/10-24, 41/10-24
Weights and Ground pressure
Curb weight4800 kg,
5000 kg
4.8 t,
5 t
10,600 lbs,
11,000 lbs
Gross vehicle weight rating7500 kg7.5 t16,500 lbs
Axle load distribution3000 kg / 4500 kg
3 t / 4.5 t
7,000 lbs / 9,900 lbs
Dimensions
Overall length6632 mm21′10″
Overall width2300 mm7′7″
Overall height2950 mm / 3100 mm9′9″ / 10′3″
Undercarriage and Suspension
Number of axles2
Wheelbase3308 mm10′11″
Front track1830 mm6′1″
Rear track1600 mm5′3″
Front overhang1200 mm4′0″
Rear overhang2124 mm7′0″
Angle of approach20°
Angle of departure12°
Leaf springs11 / 10
Tyres and Wheels
Number of tyres6
Tyres dimension7.50R16, 215/75R17.5
Miscellaneous
Steering controlsteering wheel
Additional Information

1. not to install air-conditioning, height 2950mm, curb weight of 4800kg, rated capacity of 41 / 10-24 2. Battery type / manufacturer: lithium iron phosphate / Harbin Guangyu Power Co., Ltd. 3. Motor continuous power. to 60kW, motor peak power of 100kW, the power to declare the motor peak power .4 the model of plug 5. technical stages: development period, the sales in the country. 6. Limited speed means the speed limit 69km / h.7.ABS Model: CM4XL-4S / 4M Manufacturer: Guangzhou Bureau of Automotive Electronic Control Technology Co., Ltd. .8 attachments placed outside the door.
