Zhanlong YYC6117HBEV Electric bus (#287)

Zhanlong electric bus YYC6117HBEV (batch #287) based on YBL6117HDBEV chassis is made in China by Shanxi Yuanye Automobile Manufacturing Co., Ltd. The company is located in Taiyuan, in Shanxi Province, China.

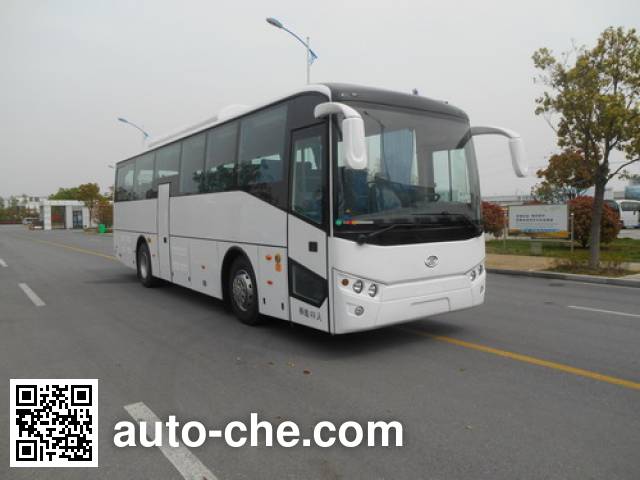

Zhanlong YYC6117HBEV electric bus

YYC6117HBEV

Zhanlong YYC6117HBEV electric bus Zhanlong YYC6117HBEV electric bus Zhanlong YYC6117HBEV electric bus
Overview
ModelYYC6117HBEV
Brand NameZhanlong
Bulletin#287
Type of vehicleElectric bus
VIN
  • LJSKA8KT×××××××××
Country of originChina
ChassisYBL6117HDBEV
Manufacturer Profile
Manufacturer
Brand
CityTaiyuan
Province (Region)Shanxi Province
CountryChina
Number of vehicles*14 models
(14 items total)
* A number of models manufactured by Shanxi Yuanye Automobile Manufacturing Co., Ltd. found in Auto-che.com vehicle database
Technical specifications
#Engine modelEngine displacementEngine powerEngine manufacturer
1TZ400XSF03 cc200 kW272 hpShenzhen Greatland Electrics Co., Ltd.
Performance
Fuelonly electric power (EV)
Maximum speed100 km/h63 mph
ABShave
Capacity
Passenger capacity (including driver)24-49, 24-51
Weights and Ground pressure
Curb weight11000 kg,
11600 kg
11 t,
11.6 t
24,000 lbs,
25,600 lbs
Gross vehicle weight rating16500 kg16.5 t36,400 lbs
Axle load distribution5500 kg / 11000 kg
5.5 t / 11 t
12,100 lbs / 24,000 lbs
Dimensions
Overall length10690 mm35′1″
Overall width2500 mm8′3″
Overall height3380 mm / 3500 mm11′2″ / 11′6″
Undercarriage and Suspension
Number of axles2
Wheelbase4990 mm16′5″
Front track2054 mm,
2070 mm
6′9″,
6′10″
Rear track1860 mm6′2″
Front overhang2550 mm8′5″
Rear overhang3150 mm10′5″
Angle of approach
Angle of departure
Leaf springs4 / 5, 10 / 11, - / -
Tyres and Wheels
Number of tyres6
Tyres dimension11R22.5
Miscellaneous
Steering controlsteering wheel
Additional Information

1: optional air conditioning, optional air-conditioned car high 3500mm; Optional closed side window and sliding side windows; optional double doors, mirrors, signs .2: optional single door, optional single body sides are extrapolated emergency window when the emergency window opening ceremony, the body set up emergency door on the left, the number of rated capacity 24-51 people .3: when the optional high-profile Curb weight 11600kg.4: installation of having a satellite positioning functions drive recorder; ABS system model / manufacturer: CM4XL-4S / 4M / Guangzhou Bureau of automotive electronic control technology Co. .5: energy storage device type / manufacturer: lithium iron phosphate battery / Hefei, China Xuan Tech power energy limited .6 company: stage of product technology for the development of .7: charging can add .8: motor power is the peak power
