King Long King Long XMQ6850BGBEVD Electric city bus (#288)

King Long electric city bus XMQ6850BGBEVD (batch #288) is made in China by Xiamen King Long United Automotive Industry Co., Ltd. The company is located in Xiamen, in Fujian Province, China.

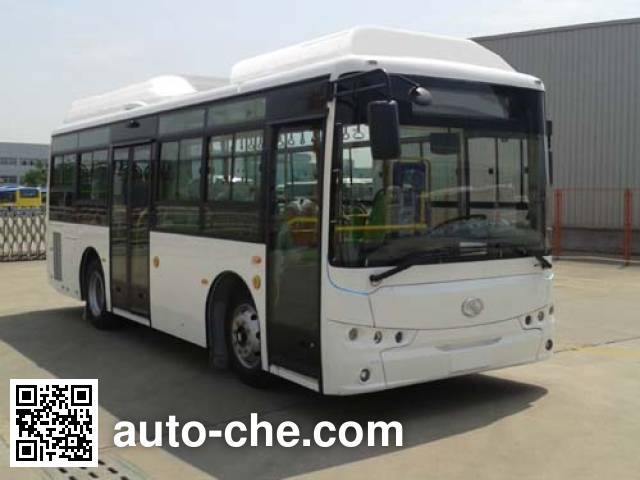

King Long XMQ6850BGBEVD electric city bus

XMQ6850BGBEVD

King Long XMQ6850BGBEVD electric city bus King Long XMQ6850BGBEVD electric city bus King Long XMQ6850BGBEVD electric city bus King Long XMQ6850BGBEVD electric city bus
King Long logo Overview
ModelXMQ6850BGBEVD
Brand NameKing Long logoKing Long
Bulletin#288
Type of vehicleElectric city bus
VIN
  • LA6N6DA5×××××××××
Country of originChina
Manufacturer Profile
Manufacturer
Brand
Type of manufacturerAutomobile manufacturer
CityXiamen
Province (Region)Fujian Province
CountryChina
Number of vehicles*1666 models
(5482 items total)
* A number of models manufactured by Xiamen King Long United Automotive Industry Co., Ltd. found in Auto-che.com vehicle database
King Long logo Technical specifications
#Engine modelEngine displacementEngine powerEngine manufacturer
1KLSTMAD150 cc90 kW123 hpXiamen King Long United Automotive Industry Co., Ltd.
Performance
Fuelonly electric power (EV)
Maximum speed69 km/h43 mph
ABShave
Capacity
Passenger capacity (including driver)63/10-30, 55/10-30
Weights and Ground pressure
Curb weight8900 kg,
9400 kg
8.9 t,
9.4 t
19,600 lbs,
20,700 lbs
Gross vehicle weight rating13000 kg13 t29,000 lbs
Axle load distribution4500 kg / 8500 kg
4.5 t / 8.5 t
9,900 lbs / 18,700 lbs
Dimensions
Overall length8545 mm28′1″
Overall width2450 mm8′1″
Overall height3240 mm / 3340 mm10′8″ / 11′0″
Undercarriage and Suspension
Number of axles2
Wheelbase4700 mm15′6″
Front track1890 mm,
2040 mm,
2075 mm
6′3″,
6′9″,
6′10″
Rear track1810 mm,
1845 mm,
1870 mm
6′0″,
6′1″,
6′2″
Front overhang1840 mm6′1″
Rear overhang2005 mm6′7″
Angle of approach
Angle of departure
Leaf springs3 / 3, 8 / 9, 8 / 10, - / -
Tyres and Wheels
Number of tyres6
Tyres dimension9R22.5, 255/70R22.5
Miscellaneous
Steering controlsteering wheel
Additional Information

1. emergency window can be used push-pull or push-on attachments enclosed or closed down under the push-pull or push on the enclosed side windows, optional rear-view mirror; 2 optional different front and rear lamps and front and rear styling Wai .; 3:00 with optional low curb weight of 8900kg, the number of seats 63 / 10-30; while the optional high with Curb Weight 9400kg, seat number 55 / 10-30; 4 promote the use of a city or region: Beijing, Tianjin, Taiyuan, Jincheng, Dalian, Shanghai, Ningbo, Hefei, Wuhu, Qingdao, Zhengzhou, Xinxiang, Wuhan, Xiangyang, Tan area, Guangzhou, Shenzhen, Haikou, Chengdu, Chongqing, Kunming, Xi'an, Lanzhou; Hebei urban agglomeration (Shijiazhuang, Tangshan, Handan, Baoding, Xingtai, Langfang, Hengshui and Cangzhou, Chengde, Zhangjiakou), Zhejiang urban agglomeration (Hangzhou
