Golden Dragon Golden Dragon XML6809JEV60 Electric bus (#291)

Golden Dragon electric bus XML6809JEV60 (batch #291) is made in China by Xiamen Golden Dragon Bus Co., Ltd. The company is located in Xiamen, in Fujian Province, China.

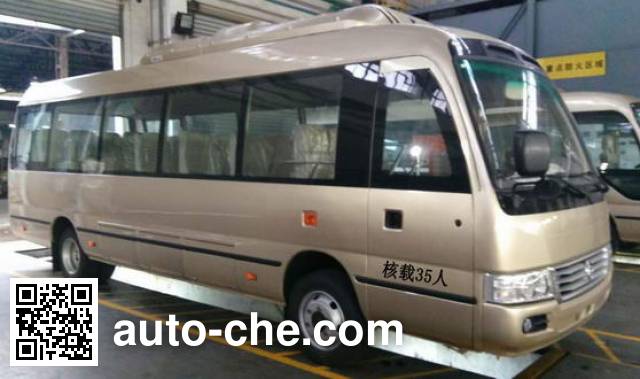

Golden Dragon XML6809JEV60 electric bus

XML6809JEV60

Golden Dragon XML6809JEV60 electric bus Golden Dragon XML6809JEV60 electric bus Golden Dragon XML6809JEV60 electric bus Golden Dragon XML6809JEV60 electric bus Golden Dragon XML6809JEV60 electric bus
Golden Dragon logo Overview
ModelXML6809JEV60
Brand NameGolden Dragon logoGolden Dragon
Bulletin#291
Type of vehicleElectric bus
VIN
  • LL3AECJ3×××××××××
Country of originChina
Manufacturer Profile
Manufacturer
Brand
Type of manufacturerAutomobile manufacturer
CityXiamen
Province (Region)Fujian Province
CountryChina
Number of vehicles*2074 models
(5947 items total)
* A number of models manufactured by Xiamen Golden Dragon Bus Co., Ltd. found in Auto-che.com vehicle database
Golden Dragon logo Technical specifications
#Engine modelEngine displacementEngine powerEngine manufacturer
1WR510-02020 cc150 kW204 hpFujian Wanrun New Energy Technology Co., Ltd.
Performance
Fuelonly electric power (EV)
Maximum speed100 km/h63 mph
ABShave
Capacity
Passenger capacity (including driver)24-35, 24-33
Weights and Ground pressure
Curb weight6300 kg,
6500 kg
6.3 t,
6.5 t
13,900 lbs,
14,300 lbs
Gross vehicle weight rating9400 kg9.4 t20,700 lbs
Axle load distribution3500 kg / 5900 kg
3.5 t / 5.9 t
7,700 lbs / 13,000 lbs
Dimensions
Overall length8050 mm26′5″
Overall width2280 mm7′6″
Overall height2860 mm / 2980 mm9′5″ / 9′10″
Undercarriage and Suspension
Number of axles2
Wheelbase4185 mm13′9″
Front track1904 mm,
1985 mm
6′3″,
6′7″
Rear track1650 mm5′5″
Front overhang1900 mm6′3″
Rear overhang1965 mm6′6″
Angle of approach13°
Angle of departure13°
Leaf springs4 / 4, - / -
Tyres and Wheels
Number of tyres6
Tyres dimension215/75R17.5
Miscellaneous
Steering controlsteering wheel
Additional Information

1. Optional open the back door when the rated capacity 24-33 people; optional folding passenger door; outside another option Tilting passenger door; optional canceled when overhead air-conditioned vehicle height 2860mm;. 2 car installation tachograph with a satellite positioning functions; 3.ABS controller models / manufacturers: CM4XL-4S / 4M / Guangzhou Bureau of automotive electronic control technology Co., Ltd; 4 types of energy storage devices / manufacturer: lithium iron phosphate power battery / Ningde Times new energy technology Co., Ltd; 5 motor power rating:. 90kW, peak power: 150kW; 6 operational approval areas: National; 7 technical phases: development period; 8 before another optional grille;. side windows optional push-pull structure.
