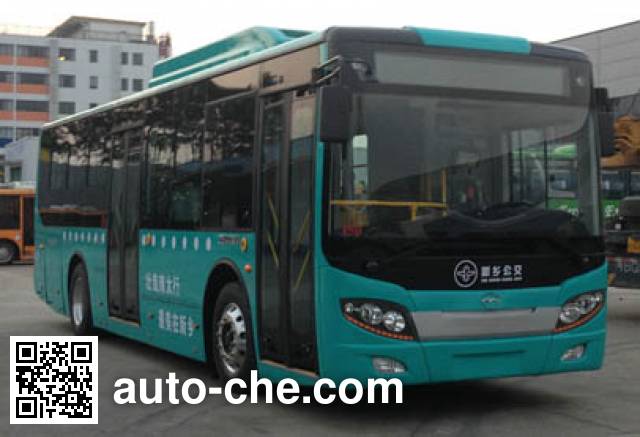

Wuzhoulong WZL6106EVG1 Electric city bus (#291)
Wuzhoulong electric city bus WZL6106EVG1 (batch #291) is made in China by Chongqing Wuzhoulong Dragon New Energy Automobile Co., Ltd. (WZL). The company is located in Zhongqing, in Chongqing Municipality, China.
WZL6106EVG1
Overview
| Model | WZL6106EVG1 |
| Brand Name |  Wuzhoulong |
| Bulletin | #291 |
| Type of vehicle | Electric city bus |
| VIN |
|
| Country of origin | China |
Manufacturer Profile
| Manufacturer | Chongqing Wuzhoulong Dragon New Energy Automobile Co., Ltd. (WZL) |
| Brands | |
| City | Zhongqing |
| Province (Region) | Chongqing Municipality |
| Country | China |
| Number of vehicles* | 29 models (30 items total) |
| * A number of models manufactured by Chongqing Wuzhoulong Dragon New Energy Automobile Co., Ltd. (WZL) found in Auto-che.com vehicle database | |
Technical specifications
| # | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
|---|---|---|---|---|---|---|---|
| 1 | TZ405XSD23 | cc | 150 kW | 204 hp | Hunan CSR Times Electric Vehicle Co., Ltd. | ||
| Performance | ||||
|---|---|---|---|---|
| Fuel | only electric power (EV) | |||
| Maximum speed | 69 km/h | 43 mph | ||
| ABS | have | |||
| Capacity | ||||
|---|---|---|---|---|
| Passenger capacity (including driver) | 88/10-30 | |||
| Weights and Ground pressure | ||||
|---|---|---|---|---|
| Curb weight | 12200 kg | 12.2 t | 26,900 lbs | |
| Gross vehicle weight rating | 18000 kg | 18 t | 40,000 lbs | |
| Axle load distribution | 6500 kg / 11500 kg 6.5 t / 11.5 t 14,300 lbs / 25,400 lbs | |||
| Dimensions | ||||
|---|---|---|---|---|
| Overall length | 10490 mm | 34′5″ | ||
| Overall width | 2500 mm | 8′3″ | ||
| Overall height | 3200 mm | 10′6″ | ||
| Undercarriage and Suspension | ||||
|---|---|---|---|---|
| Number of axles | 2 | |||
| Wheelbase | 5300 mm | 17′5″ | ||
| Front track | 2090 mm | 6′11″ | ||
| Rear track | 1892 mm | 6′3″ | ||
| Front overhang | 2257 mm | 7′5″ | ||
| Rear overhang | 2933 mm | 9′8″ | ||
| Angle of approach | 8° | |||
| Angle of departure | 8° | |||
| Leaf springs | - / - | |||
| Tyres and Wheels | ||||
|---|---|---|---|---|
| Number of tyres | 6 | |||
| Tyres dimension | 275/70R22.5 | |||
| Miscellaneous | ||||
|---|---|---|---|---|
| Steering control | steering wheel | |||
Additional Information
1. The stage for the development of vehicle technology; 2 types of vehicle energy storage device: lithium iron phosphate battery / Thornton Hunan New Energy Technology Co., Ltd; 3 around the front and rear attachments modeling; 4 may be sold in the country .5. .ABS Model: JN144FB manufacturer: Chongqing shaped auto parts Co., Ltd.
