Jinbei Jinbei SY1030DEV3AK Electric cargo truck (#288)

Jinbei electric cargo truck SY1030DEV3AK (batch #288) based on SY1030DEV3AK chassis is made in China by Shenyang Jinbei Vehicle Manufacturing Co., Ltd. The company is located in Shenyang, in Liaoning Province, China.

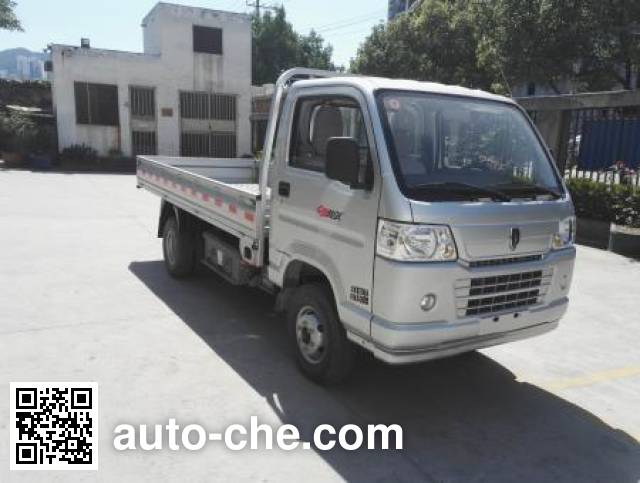

Jinbei SY1030DEV3AK electric cargo truck


Jinbei SY1030DEV3AK electric cargo truck Jinbei SY1030DEV3AK electric cargo truck
Jinbei logo Overview
Brand NameJinbei logoJinbei
Type of vehicleElectric cargo truck
  • LSYFJD3H×××××××××
Country of originChina
Manufacturer Profile
Type of manufacturerVehicle manufacturer
Province (Region)Liaoning Province
Number of vehicles*1603 models
(4963 items total)
* A number of models manufactured by Shenyang Jinbei Vehicle Manufacturing Co., Ltd. found in vehicle database
Jinbei logo Technical specifications
#Engine modelEngine displacementEngine powerEngine manufacturer
1264TYZ-XS20CA cc25 kW34 hpShanghai Electric Drive Corp.
Fuelonly electric power (EV)
Maximum speed85 km/h53 mph
Rated load capacity910 kg0.9 t2,006 lbs
Load factor (the ratio of the payload of a vehicle to its weight)0.65
Weights and Ground pressure
Curb weight1600 kg1.6 t3,500 lbs
Gross vehicle weight rating2640 kg2.6 t5,820 lbs
Axle load distribution1000 kg / 1640 kg
1 t / 1.6 t
2,000 lbs / 3,616 lbs
Overall length5030 mm16′7″
Overall width1620 mm5′4″
Overall height1980 mm6′6″
Cargo body
Cargo body length3400 mm11′2″
Cargo body width320 mm1′1″
Cargo body height1540 mm5′1″
Undercarriage and Suspension
Number of axles2
Wheelbase2770 mm9′2″
Front track1270 mm4′2″
Rear track1190 mm3′11″
Front overhang885 mm2′11″
Rear overhang1375 mm4′7″
Angle of approach27°
Angle of departure17°
Leaf springs3 / 5
Tyres and Wheels
Number of tyres6
Tyres dimension6.00-13 6PR
Seating capacity2
Steering controlsteering wheel
Additional Information

Battery Type / Model / Manufacturer: three yuan lithium battery / INR18650P / wide Xizhuo New Energy Technology Co., Ltd; rated voltage of the battery / battery capacity: 3.6V / 2.2Ah; rated voltage of the battery / battery capacity: 324V / 132Ah; drive motor Model and manufacturer: 264TYZ-XS20CA, Ltd. Shanghai electric drive; motor controller Model and manufacturer: 34S21X09D, Ltd. Shanghai electric drive; rated motor power: 25KW; motor peak power: 55KW; technical stage : the start of the demonstration area is "on the support of Beijing, Tianjin and other cities or regions develop new energy vehicles to promote the application of the notice" (Finance Building [2013] No. 805
