Sunlong Sunlong SLK6109ULE0BEVY Electric city bus (#288)

Sunlong electric city bus SLK6109ULE0BEVY (batch #288) is made in China by Shanghai Shenlong Bus Co., Ltd. The company is located in Shanghai, in Shanghai Municipality, China.

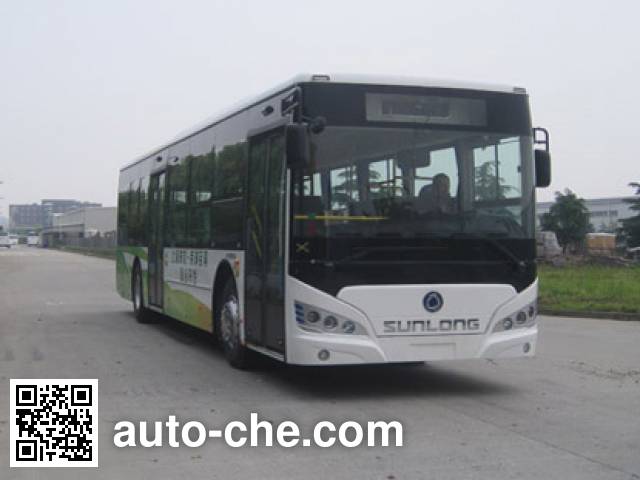

Sunlong SLK6109ULE0BEVY electric city bus

SLK6109ULE0BEVY

Sunlong SLK6109ULE0BEVY electric city bus Sunlong SLK6109ULE0BEVY electric city bus Sunlong SLK6109ULE0BEVY electric city bus Sunlong SLK6109ULE0BEVY electric city bus Sunlong SLK6109ULE0BEVY electric city bus
Sunlong logo Overview
ModelSLK6109ULE0BEVY
Brand NameSunlong logoSunlong
Bulletin#288
Type of vehicleElectric city bus
VIN
  • LJM6GCDB×××××××××
Country of originChina
Manufacturer Profile
Manufacturer
Brands
Type of manufacturerBus manufacturer
CityShanghai
Province (Region)Shanghai Municipality
CountryChina
Number of vehicles*583 models
(1817 items total)
* A number of models manufactured by Shanghai Shenlong Bus Co., Ltd. found in Auto-che.com vehicle database
Sunlong logo Technical specifications
#Engine modelEngine displacementEngine powerEngine manufacturer
1TZ368XS-YBM205 cc140 kW191 hpNanjing Yuebo Power System Co., Ltd.
Performance
Fuelonly electric power (EV)
Maximum speed69 km/h43 mph
ABShave
Capacity
Passenger capacity (including driver)92/10-40, 86/10-40, 73/10-40
Weights and Ground pressure
Curb weight10500 kg,
10900 kg,
11700 kg
10.5 t,
10.9 t,
11.7 t
23,100 lbs,
24,000 lbs,
25,800 lbs
Gross vehicle weight rating16500 kg16.5 t36,400 lbs
Axle load distribution5500 kg / 11000 kg
5.5 t / 11 t
12,100 lbs / 24,000 lbs
Dimensions
Overall length10500 mm34′6″
Overall width2500 mm8′3″
Overall height3200 mm / 3060 mm10′6″ / 10′1″
Undercarriage and Suspension
Number of axles2
Wheelbase5000 mm16′5″
Front track2020 mm,
2070 mm,
2100 mm
6′8″,
6′10″,
6′11″
Rear track1860 mm6′2″
Front overhang2300 mm7′7″
Rear overhang3200 mm10′6″
Angle of approach
Angle of departure
Leaf springs- / -, 3 / 4, 4 / 5
Tyres and Wheels
Number of tyres6
Tyres dimension275/70R22.5
Miscellaneous
Steering controlsteering wheel
Additional Information

1. The side window optional sliding sash other forms. 2. Allow external power supply. 3. cancel the overhead air conditioning, corresponding to the vehicle height 3060mm. 4. Curb weight is 10500kg corresponding to the rated capacity 92 / 10-40, the curb weight of 10900kg corresponding to the rated capacity 86 / 10-40, the curb weight of 11700kg corresponding to the rated capacity 73 / 10-40. 5. Another optional rear-view mirror. 6. Another option around local modeling. 7. cancel around vents. 8. The motor rated power 80kW, peak power of 140kW. 9. The car belongs to the development of products, sales in the country. 10. The energy storage device type / Manufacturer: lithium iron phosphate battery / Wo Tema Battery Co., Ltd. of Shenzhen City. 11.ABS system
