AUTO-CHE

Sunlong Sunlong SLK5030XXYE0BEV01 Electric cargo van (#288)

Sunlong electric cargo van SLK5030XXYE0BEV01 (batch #288) is made in China by Shanghai Shenlong Bus Co., Ltd. The company is located in Shanghai, in Shanghai Municipality, China.

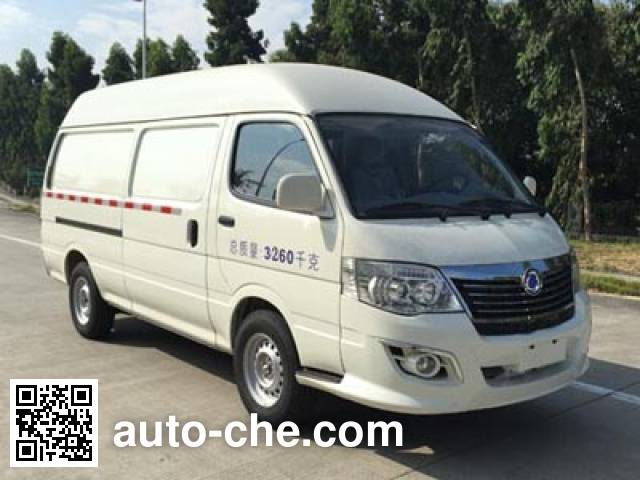

Sunlong SLK5030XXYE0BEV01 electric cargo van

SLK5030XXYE0BEV01

Sunlong SLK5030XXYE0BEV01 electric cargo van Sunlong SLK5030XXYE0BEV01 electric cargo van Sunlong SLK5030XXYE0BEV01 electric cargo van Sunlong SLK5030XXYE0BEV01 electric cargo van
Sunlong logo Overview
ModelSLK5030XXYE0BEV01
Brand NameSunlong logoSunlong
Bulletin#288
Type of vehicleElectric cargo van
VIN
  • LJM5BBDA×××××××××
Country of originChina
Manufacturer Profile
Manufacturer
Brands
Type of manufacturerBus manufacturer
CityShanghai
Province (Region)Shanghai Municipality
CountryChina
Number of vehicles*583 models
(1817 items total)
* A number of models manufactured by Shanghai Shenlong Bus Co., Ltd. found in Auto-che.com vehicle database
Sunlong logo Technical specifications
#Engine modelEngine displacementEngine powerEngine manufacturer
1TZ210XSWT45AXL cc87 kW119 hpJiangsu Weiteli Electric Motor Manufacturing Co., Ltd.
Performance
Fuelonly electric power (EV)
Maximum speed104 km/h65 mph
ABSnone
Capacity
Rated load capacity1000 kg1 t2,000 lbs
Weights and Ground pressure
Curb weight2130 kg2.1 t4,696 lbs
Gross vehicle weight rating3260 kg3.3 t7,187 lbs
Axle load distribution1480 kg / 1780 kg
1.5 t / 1.8 t
3,263 lbs / 3,924 lbs
Dimensions
Overall length5300 mm17′5″
Overall width1700 mm5′7″
Overall height2230 mm / 2030 mm7′4″ / 6′8″
Undercarriage and Suspension
Number of axles2
Wheelbase2890 mm9′6″
Front track1450 mm4′10″
Rear track1430 mm4′9″
Front overhang1300 mm4′4″
Rear overhang1110 mm3′8″
Angle of approach18°
Angle of departure15°
Leaf springs- / 5
Tyres and Wheels
Number of tyres4
Tyres dimension195R15LT
Miscellaneous
Seating capacity2
Steering controlsteering wheel
Additional Information

1. Optional front and rear lighting design around, cancel front fog lights, optional rear-view mirror; 2 optional front bumper, optional rear bumper, rear bumper with optional stepping decorative sheet; 3 driving area cargo and isolation; 4 optional cover the top and high-top status; 5 car an initial stage products, sales to the Ministry of Finance, Ministry of Science, industry and information technology, National development and reform Commission jointly issued the " support Beijing, Tianjin and other cities or regions develop new energy vehicles to promote the application of the notice "(Finance Building [2013] 805)," on the support of Shenyang, Changchun and other cities or regions develop new energy vehicles to promote the application of the notice "(Finance Building [ 2014] No. 10) issued document in the application of new energy vehicles to promote the use of city or regional operations, and other cities demonstration run national regulations
