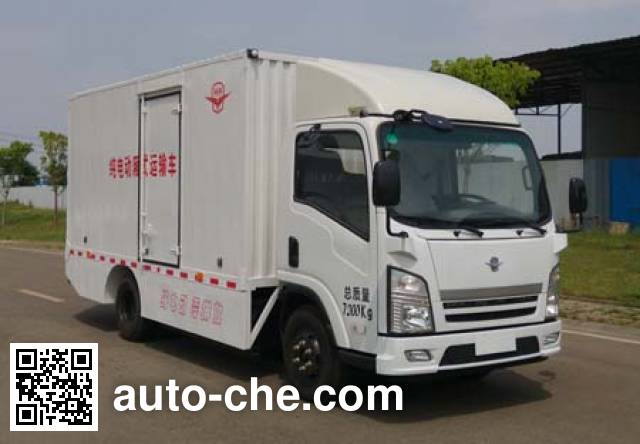

Yuanda SCZ5071XXYBEV Electric cargo van (#289)
Yuanda electric cargo van SCZ5071XXYBEV (batch #289) based on SCZ1071BEVD() chassis is made in China by FAW (Sichuan) Special Purpose Vehicle Co., Ltd. The company is located in Chengdu, in Sichuan Province, China.
SCZ5071XXYBEV
Overview
| Model | SCZ5071XXYBEV |
| Brand Name |  Yuanda |
| Bulletin | #289 |
| Type of vehicle | Electric cargo van |
| VIN |
|
| Country of origin | China |
| Chassis | SCZ1071BEVD() |
Manufacturer Profile
| Manufacturer | FAW (Sichuan) Special Purpose Vehicle Co., Ltd. |
| A subsidiary of FAW Group Corporation (China First Automobile Group Corporation, First Automobile Works). | |
| Brand | |
| Type of manufacturer | Special purpose vehicle manufacturer |
| City | Chengdu |
| Province (Region) | Sichuan Province |
| Country | China |
| Number of vehicles* | 296 models (680 items total) |
| * A number of models manufactured by FAW (Sichuan) Special Purpose Vehicle Co., Ltd. found in Auto-che.com vehicle database | |
Technical specifications
| # | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
|---|---|---|---|---|---|---|---|
| 1 | SJ075300A-2103 | cc | 120 kW | 164 hp | Shanghai Zhongke Shenjiang Electric Vehicle Co., Ltd. | ||
| Performance | ||||
|---|---|---|---|---|
| Fuel | only electric power (EV) | |||
| Maximum speed | 80 km/h | 50 mph | ||
| ABS | have | |||
| Capacity | ||||
|---|---|---|---|---|
| Rated load capacity | 3145 kg, 3210 kg | 3.1 t, 3.2 t | 6,934 lbs, 7,077 lbs | |
| Weights and Ground pressure | ||||
|---|---|---|---|---|
| Curb weight | 3960 kg | 4 t | 8,730 lbs | |
| Gross vehicle weight rating | 7300 kg | 7.3 t | 16,100 lbs | |
| Axle load distribution | 2580 kg / 4720 kg 2.6 t / 4.7 t 5,688 lbs / 10,406 lbs | |||
| Dimensions | ||||
|---|---|---|---|---|
| Overall length | 6440 mm | 21′2″ | ||
| Overall width | 2130 mm | 7′0″ | ||
| Overall height | 2880 mm | 9′6″ | ||
| Cargo body | ||||
|---|---|---|---|---|
| Cargo body length | 4450 mm | 14′8″ | ||
| Cargo body width | 1900 mm | 6′3″ | ||
| Cargo body height | 2000 mm | 6′7″ | ||
| Undercarriage and Suspension | ||||
|---|---|---|---|---|
| Number of axles | 2 | |||
| Wheelbase | 3360 mm | 11′1″ | ||
| Front track | 1580 mm | 5′3″ | ||
| Rear track | 1525 mm | 5′1″ | ||
| Front overhang | 1112 mm | 3′8″ | ||
| Rear overhang | 1968 mm | 6′6″ | ||
| Angle of approach | 19° | |||
| Angle of departure | 15° | |||
| Leaf springs | 4 / 8+8 | |||
| Tyres and Wheels | ||||
|---|---|---|---|---|
| Number of tyres | 6 | |||
| Tyres dimension | 7.00-16LT 14PR, 7.00R16LT 14PR | |||
| Miscellaneous | ||||
|---|---|---|---|---|
| Seating capacity | 3, 2 | |||
| Steering control | steering wheel | |||
Additional Information
Top compartment closed, not open side of the vehicle off the ground high 335mm; rear protective device material: rectangular tube Q235; section size: 100mm × 50mm; height from the ground: 480mm; Connection: bolt connection with the chassis frame .ABS Manufacturer / Model : Guangzhou Bureau of automotive electronic control technology Co., Ltd. /CM4XL-4S/4K(4S/4M).1 battery type / model / manufacturer: three yuan lithium-ion battery / IMP1368225F / Zhejiang Jiangchao Wei Chong yuan Industrial Co., Ltd;. battery cell voltage / capacity: 3.7V / 20Ah, the total voltage / total capacity: 370V / 200Ah; 2 drive motor type / model / manufacturer: permanent magnet synchronous motor / SJ075300A-210
