Changan Changan SC1031GND51BEV Electric truck chassis (#286)

Changan electric truck chassis SC1031GND51BEV (batch #286) is made in China by Chongqing Changan Automobile Co., Ltd. The company is located in Zhongqing, in Chongqing Municipality, China.

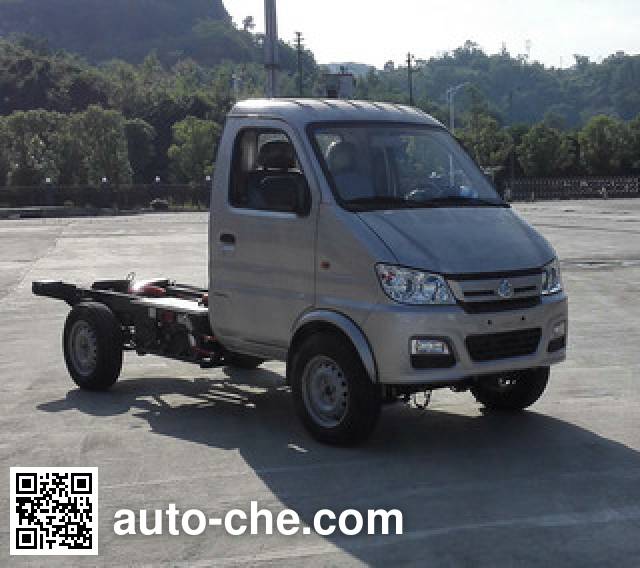

Changan SC1031GND51BEV electric truck chassis

SC1031GND51BEV

Changan SC1031GND51BEV electric truck chassis Changan SC1031GND51BEV electric truck chassis Changan SC1031GND51BEV electric truck chassis Changan SC1031GND51BEV electric truck chassis
Changan logo Overview
ModelSC1031GND51BEV
Brand NameChangan logoChangan
Bulletin#286
Type of vehicleElectric truck chassis
VIN
  • LSCABN3C×××××××××
Country of originChina
Manufacturer Profile
Manufacturer
Brands
Type of manufacturerCar manufacturer
CityZhongqing
Province (Region)Chongqing Municipality
CountryChina
Number of vehicles*1918 models
(4351 items total)
* A number of models manufactured by Chongqing Changan Automobile Co., Ltd. found in Auto-che.com vehicle database
Changan logo Technical specifications
#Engine modelEngine displacementEngine powerEngine manufacturer
1TZ210XS-025-YJ cc25 kW34 hpChengdu Yajun New Energy Automotive Technology Co., Ltd.
Performance
Fuelonly electric power (EV)
Maximum speed100 km/h63 mph
ABSnone
Weights and Ground pressure
Curb weight1390 kg1.4 t3,064 lbs
Gross vehicle weight rating2800 kg2.8 t6,200 lbs
Axle load distribution1050 kg / 1750 kg
1.1 t / 1.8 t
2,315 lbs / 3,858 lbs
Dimensions
Overall length4060 mm13′4″
Overall width1520 mm5′0″
Overall height1915 mm6′4″
Undercarriage and Suspension
Number of axles2
Wheelbase2700 mm8′11″
Front track1360 mm4′6″
Rear track1300 mm4′4″
Front overhang640 mm2′2″
Rear overhang720 mm2′5″
Angle of approach36°
Angle of departure25°
Leaf springs4 / 5
Tyres and Wheels
Number of tyres4
Tyres dimension175R14LT
Miscellaneous
Seating capacity2
Steering controlsteering wheel
Additional Information

1. Optional components: mirrors, dome, optional front fog lamps may .2 Battery type / model / manufacturer: ternary nickel, cobalt and manganese lithium composite battery /3.6V2.6Ah/ Huizhou billion Wei Li Co., Ltd. .3 rated battery cell voltage / capacity: 3.6V / 2.55Ah; battery module rated voltage / capacity:. 3.6V / 112.2Ah; motor type / motor type / motor controller Model / manufacturer: Wing magnet synchronous motor / TZ210XS-025-YJ / KTZ38X32S-01YJ / Chengdu new energy automobile technology Co., Ltd. Ya-Chun; rated motor power: 25KW; motor peak power:. 50kW.4 technical stages: initial stage.
