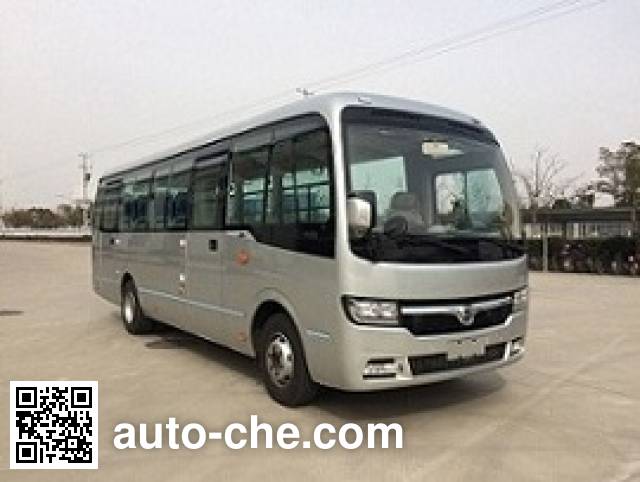

RuAvic QTK6810BEVG4F Electric city bus (#291)
Avic electric city bus QTK6810BEVG4F (batch #291) is made in China by AVIC Automobile Co., Ltd. The company is located in Nantong, in Jiangsu Province, China.
QTK6810BEVG4F
Overview
| Model | QTK6810BEVG4F |
| Brand Name | Avic |
| Bulletin | #291 |
| Type of vehicle | Electric city bus |
| VIN |
|
| Country of origin | China |
Manufacturer Profile
| Manufacturer | AVIC Automobile Co., Ltd. |
| A subsidiary of AVIC - The Aviation Industry Corporation of China, CNAC - China National Aviation Corporation. | |
| Brand | |
| City | Nantong |
| Province (Region) | Jiangsu Province |
| Country | China |
| Number of vehicles* | 26 models (45 items total) |
| * A number of models manufactured by AVIC Automobile Co., Ltd. found in Auto-che.com vehicle database | |
Technical specifications
| # | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
|---|---|---|---|---|---|---|---|
| 1 | O150WB | cc | 150 kW | 204 hp | Shanghai Dajun Power Control Technology Co., Ltd. | ||
| Performance | ||||
|---|---|---|---|---|
| Fuel | only electric power (EV) | |||
| Maximum speed | 69 km/h | 43 mph | ||
| ABS | have | |||
| Capacity | ||||
|---|---|---|---|---|
| Passenger capacity (including driver) | 42/10-22 | |||
| Weights and Ground pressure | ||||
|---|---|---|---|---|
| Curb weight | 5850 kg | 5.9 t | 12,897 lbs | |
| Gross vehicle weight rating | 8950 kg | 9 t | 19,731 lbs | |
| Axle load distribution | 2975 kg / 5975 kg 3 t / 6 t 6,559 lbs / 13,173 lbs | |||
| Dimensions | ||||
|---|---|---|---|---|
| Overall length | 8100 mm | 26′7″ | ||
| Overall width | 2200 mm | 7′3″ | ||
| Overall height | 2885 mm | 9′6″ | ||
| Undercarriage and Suspension | ||||
|---|---|---|---|---|
| Number of axles | 2 | |||
| Wheelbase | 4430 mm | 14′7″ | ||
| Front track | 1842 mm | 6′1″ | ||
| Rear track | 1624 mm | 5′4″ | ||
| Front overhang | 1230 mm | 4′1″ | ||
| Rear overhang | 2440 mm | 8′1″ | ||
| Angle of approach | 17° | |||
| Angle of departure | 11° | |||
| Leaf springs | 3 / 4 | |||
| Tyres and Wheels | ||||
|---|---|---|---|---|
| Number of tyres | 6 | |||
| Tyres dimension | 215/75R17.5 | |||
| Miscellaneous | ||||
|---|---|---|---|---|
| Steering control | steering wheel | |||
Additional Information
1. The car should be installed with a satellite positioning function of the driving instrument; 2.ABS system manufacturer / model: WABCO / 44600XXXX0; 3. The technical stage of the product for the development period; 4. Can be an external charge; 5. Energy storage device type / Model / Manufacturer: Lithium ion / MC-LFP5.0Ah / Dongguan City Maike New Energy Co., Ltd.; 6.O150WB drive motor peak power 150kW, rated power 90kw; 7. Can be sold in the country; Side side decoration bright.
