Avic QTK6700HGEV1 Electric city bus (#287)

Avic electric city bus QTK6700HGEV1 (batch #287) is made in China by AVIC Automobile Co., Ltd. The company is located in Nantong, in Jiangsu Province, China.

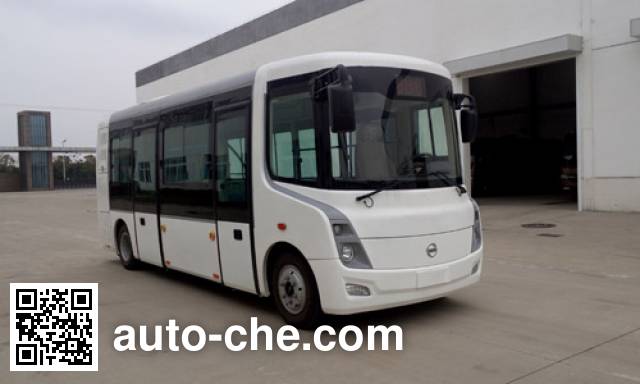

Avic QTK6700HGEV1 electric city bus

QTK6700HGEV1

Avic QTK6700HGEV1 electric city bus Avic QTK6700HGEV1 electric city bus Avic QTK6700HGEV1 electric city bus Avic QTK6700HGEV1 electric city bus
Overview
ModelQTK6700HGEV1
Brand NameAvic
Bulletin#287
Type of vehicleElectric city bus
VIN
  • LA9BDBJB×××NTC×××
Country of originChina
Manufacturer Profile
Manufacturer
 A subsidiary of AVIC - The Aviation Industry Corporation of China, CNAC - China National Aviation Corporation.
Brand
CityNantong
Province (Region)Jiangsu Province
CountryChina
Number of vehicles*26 models
(45 items total)
* A number of models manufactured by AVIC Automobile Co., Ltd. found in Auto-che.com vehicle database
Technical specifications
#Engine modelEngine displacementEngine powerEngine manufacturer
1LGTPMD450040BRL cc80 kW109 hpSuzhou Lixin New Energy Technology Co., Ltd.
Performance
Fuelonly electric power (EV)
Maximum speed69 km/h43 mph
ABShave
Capacity
Passenger capacity (including driver)38/10-16
Weights and Ground pressure
Curb weight4950 kg / 5030 kg5 t / 5 t10,913 lbs / 11,089 lbs
Gross vehicle weight rating7430 kg7.4 t16,380 lbs
Axle load distribution2680 kg / 4750 kg
2.7 t / 4.8 t
5,908 lbs / 10,472 lbs
Dimensions
Overall length6990 mm23′0″
Overall width2200 mm7′3″
Overall height2700 mm / 2850 mm8′11″ / 9′5″
Undercarriage and Suspension
Number of axles2
Wheelbase4750 mm15′8″
Front track1840 mm6′1″
Rear track1610 mm5′4″
Front overhang870 mm2′11″
Rear overhang1370 mm4′6″
Angle of approach16°
Angle of departure10°
Leaf springs1+- / 1+-
Tyres and Wheels
Number of tyres6
Tyres dimension7.00R16 LT
Miscellaneous
Steering controlsteering wheel
Additional Information

1. The car optional tachograph has satellite positioning function; 2.ABS system manufacturers: Zhejiang VIE Science and Technology Co., Ltd., Model: VIE ABS-II; 3 stage technology for the development of products; 4 can. external charging; 5 energy storage device type / model / manufacturer: lithium iron phosphate batteries / 63225 / storage Zhongtian Technology Co., Ltd; 6.LGTPMD450040BRL type drive motor peak power 80kW, rated power 50kW; 7 optional air conditioning. , install air conditioning height 2850mm, curb weight is 5030, do not install air conditioning 2700mm, curb weight 4950; 8 can be sold in the country; 9 increases optional front Chinese trademark increase optional rear logo.
