Anyuan PK6851BEV Electric city bus (#288)

Anyuan electric city bus PK6851BEV (batch #288) is made in China by Anyuan Bus Manufacturing Co., Ltd. The company is located in Pingxiang, in Jiangxi Province, China.

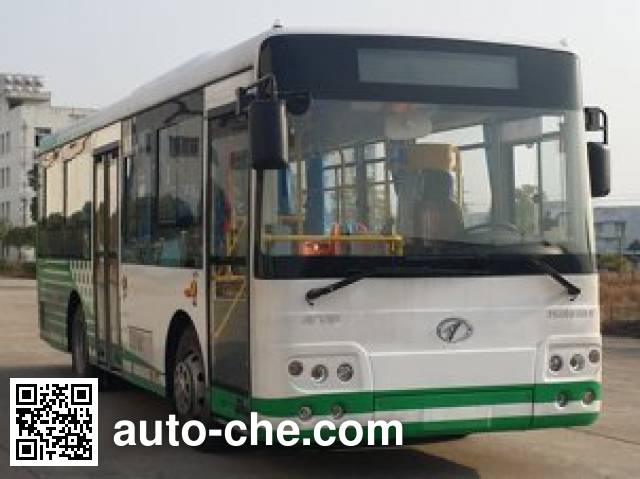

Anyuan PK6851BEV electric city bus

PK6851BEV

Anyuan PK6851BEV electric city bus Anyuan PK6851BEV electric city bus
Overview
ModelPK6851BEV
Brand NameAnyuan
Bulletin#288
Type of vehicleElectric city bus
VIN
  • LPKD53B2×××××××××
Country of originChina
Manufacturer Profile
Manufacturer
Brand
Type of manufacturerBus manufacturer
CityPingxiang
Province (Region)Jiangxi Province
CountryChina
Number of vehicles*226 models
(489 items total)
* A number of models manufactured by Anyuan Bus Manufacturing Co., Ltd. found in Auto-che.com vehicle database
Technical specifications
#Engine modelEngine displacementEngine powerEngine manufacturer
1TZ400XSHK9 cc90 kW123 hpWuhan Kang Power Technology Co., Ltd (Hiconics)
Performance
Fuelonly electric power (EV)
Maximum speed69 km/h43 mph
ABShave
Capacity
Passenger capacity (including driver)51/10-31
Weights and Ground pressure
Curb weight8350 kg8.4 t18,409 lbs
Gross vehicle weight rating11700 kg11.7 t25,800 lbs
Axle load distribution3900 kg / 7800 kg
3.9 t / 7.8 t
8,600 lbs / 17,200 lbs
Dimensions
Overall length8510 mm28′0″
Overall width2430 mm8′0″
Overall height3250 mm10′8″
Undercarriage and Suspension
Number of axles2
Wheelbase4000 mm13′2″
Front track2060 mm6′10″
Rear track1800 mm5′11″
Front overhang1910 mm6′4″
Rear overhang2600 mm8′7″
Angle of approach11°
Angle of departure
Leaf springs3 / 4
Tyres and Wheels
Number of tyres6
Tyres dimension9R22.5
Miscellaneous
Steering controlsteering wheel
Additional Information

1. The external charging; 2 types of energy storage device / model / manufacturer: Lithium-ion battery / HPPF13192320 60AH / Henan Huanyu Purcell New Energy Technology Co., Ltd; 3 Technical stages: the development of; 4 car should be. installation WABCO Vehicle control systems (China) Co., Ltd., ABS-E 4S / 4M type ABS system controller; 5 motor is rated at 90kW, peak power of 150kW.
