King Long King Long NJT5071XLCBEV Electric refrigerated truck (#270)

King Long electric refrigerated truck NJT5071XLCBEV (batch #270) is made in China by Nanjing Special Automobile Factory Co., Ltd. The company is located in Nanjing, in Jiangsu Province, China.

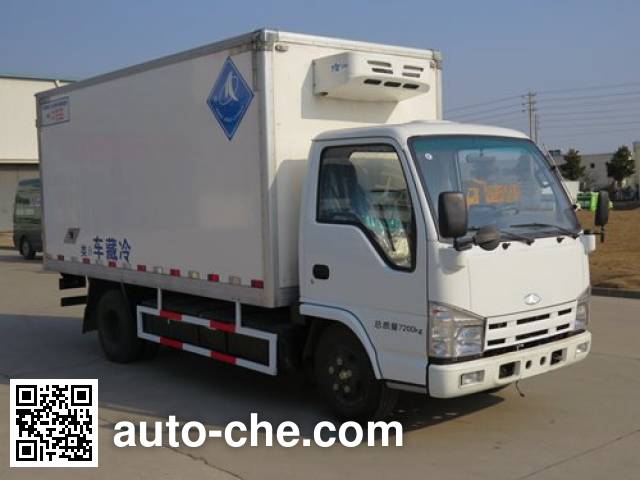

King Long NJT5071XLCBEV electric refrigerated truck

NJT5071XLCBEV

King Long NJT5071XLCBEV electric refrigerated truck King Long NJT5071XLCBEV electric refrigerated truck King Long NJT5071XLCBEV electric refrigerated truck
King Long logo Overview
ModelNJT5071XLCBEV
Brand NameKing Long logoKing Long
Bulletin#270
Type of vehicleElectric refrigerated truck
VIN
  • LA9AXH5B×××LJA×××
Country of originChina
Manufacturer Profile
Manufacturer
Brand
CityNanjing
Province (Region)Jiangsu Province
CountryChina
Number of vehicles*73 models
(96 items total)
* A number of models manufactured by Nanjing Special Automobile Factory Co., Ltd. found in Auto-che.com vehicle database
King Long logo Technical specifications
#Engine modelEngine displacementEngine powerEngine manufacturer
1YBM300 cc60 kW82 hpNanjing Yuebo Automotive Electronics Co., Ltd.
Performance
Maximum speed80 km/h50 mph
ABSnone
Capacity
Rated load capacity3180 kg3.2 t7,011 lbs
Weights and Ground pressure
Curb weight3890 kg3.9 t8,576 lbs
Gross vehicle weight rating7200 kg7.2 t15,900 lbs
Axle load distribution2600 kg / 4600 kg
2.6 t / 4.6 t
5,700 lbs / 10,100 lbs
Dimensions
Overall length5995 mm19′9″
Overall width2020 mm6′8″
Overall height2880 mm9′6″
Cargo body
Cargo body length4150 mm13′8″
Cargo body width1750 mm5′9″
Cargo body height1740 mm5′9″
Undercarriage and Suspension
Number of axles2
Wheelbase3360 mm11′1″
Front track1504 mm5′0″
Rear track1425 mm4′9″
Front overhang1015 mm3′4″
Rear overhang1620 mm5′4″
Angle of approach24°
Angle of departure15°
Leaf springs8 / 6+5
Tyres and Wheels
Number of tyres6
Tyres dimension7.00-16 14PR
Additional Information

Battery Type / model / Manufacturer: three yuan lithium manganese composite battery / IMP2265106 / Shandong Granville Power Co. environmental protection; battery rated voltage / Battery capacity: 3.7V / 12Ah; battery rated voltage / battery capacity: 358.9V / 288Ah; motor model and production companies: YBM300 / Nanjing Automotive Electronics Co., the Bo; motor controller Model and Manufacturer: YBC300 / Nanjing Automotive Electronics Co., the Bo; motor power: 60kW; motor peak power: 90kW. Technical stages: an initial stage; car demonstration run region of Jiangsu Province and other demonstration area. Top compartment closed, not open.Side protection and rear guards materials used for Q23
