RuJiankang NJC6801YBEV Electric bus (#291)

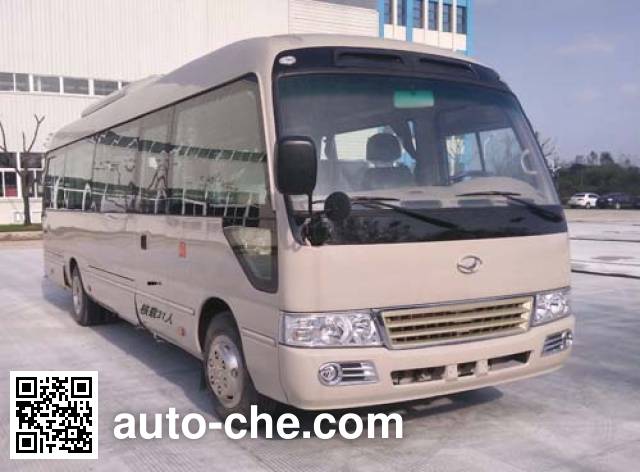

Jiankang electric bus NJC6801YBEV (batch #291) is made in China by Nanjing Public Transport Vehicle Plant. The company is located in Nanjing, in Jiangsu Province, China.
NJC6801YBEV
Overview
| Model | NJC6801YBEV |
| Brand Name | Jiankang |
| Bulletin | #291 |
| Type of vehicle | Electric bus |
| VIN |
|
| Country of origin | China |
Manufacturer Profile
| Manufacturer | Nanjing Public Transport Vehicle Plant |
| Brand | |
| Type of manufacturer | Vehicle manufacturer |
| City | Nanjing |
| Province (Region) | Jiangsu Province |
| Country | China |
| Number of vehicles* | 38 models (38 items total) |
| * A number of models manufactured by Nanjing Public Transport Vehicle Plant found in Auto-che.com vehicle database | |
Technical specifications
| # | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
|---|---|---|---|---|---|---|---|
| 1 | TZ400XSHK9 | cc | 150 kW | 204 hp | Wuhan Kang Power Technology Co., Ltd (Hiconics) | ||
| Performance | ||||
|---|---|---|---|---|
| Fuel | only electric power (EV) | |||
| Maximum speed | 90 km/h | 56 mph | ||
| ABS | have | |||
| Capacity | ||||
|---|---|---|---|---|
| Passenger capacity (including driver) | 24-31 | |||
| Weights and Ground pressure | ||||
|---|---|---|---|---|
| Curb weight | 6000 kg, 6200 kg | 6 t, 6.2 t | 13,000 lbs, 13,700 lbs | |
| Gross vehicle weight rating | 9000 kg | 9 t | 20,000 lbs | |
| Axle load distribution | 3000 kg / 6000 kg 3 t / 6 t 7,000 lbs / 13,000 lbs | |||
| Dimensions | ||||
|---|---|---|---|---|
| Overall length | 8010 mm | 26′4″ | ||
| Overall width | 2160 mm | 7′2″ | ||
| Overall height | 2720 mm / 2860 mm | 9′0″ / 9′5″ | ||
| Undercarriage and Suspension | ||||
|---|---|---|---|---|
| Number of axles | 2 | |||
| Wheelbase | 4500 mm | 14′10″ | ||
| Front track | 1830 mm | 6′1″ | ||
| Rear track | 1610 mm | 5′4″ | ||
| Front overhang | 1150 mm | 3′10″ | ||
| Rear overhang | 2360 mm | 7′9″ | ||
| Angle of approach | 17° | |||
| Angle of departure | 9° | |||
| Leaf springs | 3 / 4, - / - | |||
| Tyres and Wheels | ||||
|---|---|---|---|---|
| Number of tyres | 6 | |||
| Tyres dimension | 215/75R17.5 | |||
| Miscellaneous | ||||
|---|---|---|---|---|
| Steering control | steering wheel | |||
Additional Information
1 car optional overhead air conditioning; 2, optional external swing doors and other forms of sliding sash structure; 3, the car sales in the country; 4, the product development stage of technology; 5, energy storage device type / manufacturer: lithium-ion battery / Huizhou billion Wei Li Co., Ltd.; 6, the drive motor is rated at 90kW, peak power of 150kW; 7, ABS model / manufacturer: CM4XL-4S / 4M / Guangzhou Municipal Bureau of automotive system Action technology development Co., Ltd.
