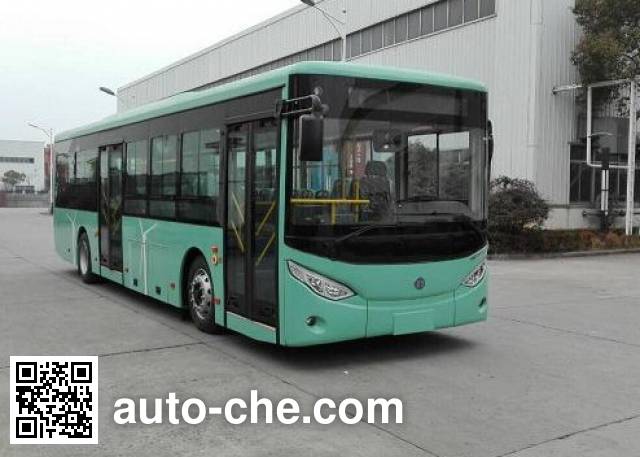

Zhongyi Bus JYK6100GBEV Electric city bus (#288)

Zhongyi Bus electric city bus JYK6100GBEV (batch #288) is made in China by Jiangxi Yichun Bus Factory Co., Ltd. The company is located in Fengxin, in Jiangxi Province, China.

Zhongyi Bus JYK6100GBEV electric city bus

JYK6100GBEV

Zhongyi Bus JYK6100GBEV electric city bus Zhongyi Bus JYK6100GBEV electric city bus Zhongyi Bus JYK6100GBEV electric city bus Zhongyi Bus JYK6100GBEV electric city bus
Overview
ModelJYK6100GBEV
Brand NameZhongyi Bus
Bulletin#288
Type of vehicleElectric city bus
VIN
  • LA9BGZLF×××YCK×××
Country of originChina
Manufacturer Profile
Manufacturer
Brand
Type of manufacturerBus manufacturer
CityFengxin
Province (Region)Jiangxi Province
CountryChina
Number of vehicles*33 models
(35 items total)
* A number of models manufactured by Jiangxi Yichun Bus Factory Co., Ltd. found in Auto-che.com vehicle database
Technical specifications
#Engine modelEngine displacementEngine powerEngine manufacturer
1TZ400XS250 cc250 kW340 hpJiangxi Special Electric Motor Co., Ltd.
Performance
Fuelonly electric power (EV)
Maximum speed69 km/h43 mph
ABShave
Capacity
Passenger capacity (including driver)80/23-34, 80/23-48
Weights and Ground pressure
Curb weight10800 kg,
11000 kg
10.8 t,
11 t
23,800 lbs,
24,000 lbs
Gross vehicle weight rating17350 kg,
18000 kg
17.4 t,
18 t
38,250 lbs,
40,000 lbs
Axle load distribution6050 kg / 11300 kg,
6500 kg / 11500 kg
6.1 t / 11.3 t,
6.5 t / 11.5 t
13,338 lbs / 24,900 lbs,
14,300 lbs / 25,400 lbs
Dimensions
Overall length10480 mm34′5″
Overall width2500 mm8′3″
Overall height2950 mm / 3050 mm / 3000 mm / 3100 mm9′9″ / 10′1″ / 9′11″ / 10′3″
Undercarriage and Suspension
Number of axles2
Wheelbase5350 mm17′7″
Front track2060 mm,
2070 mm
6′10″,
6′10″
Rear track1860 mm6′2″
Front overhang2650 mm8′9″
Rear overhang2480 mm8′2″
Angle of approach
Angle of departure
Leaf springs4 / 5, - / -
Tyres and Wheels
Number of tyres6
Tyres dimension275/70R22.5
Miscellaneous
Steering controlsteering wheel
Additional Information

1, type of leaf spring suspension vehicle height is 2950mm, do not install air conditioning set-height 3050mm.2, ABS model / manufacturer:. ABS-E 4S / 4M / WABCO Vehicle Control Systems (China) Co., Ltd. 3, drive motor rated power: 100kW, peak power: 250kW.4, energy storage device type / manufacturer: lithium iron phosphate battery / battery Technology Co., Ltd. Beijing State .5, optional front door, the front door is a single folding fan at rated load number 80 / 23-48, when the front door is double the number of fan-folding rated capacity of 80 / 23-34.6, when the optional air suspension, the curb weight is 11000mm, height 3000,3100mm. front track is 2070mm product technology stage
