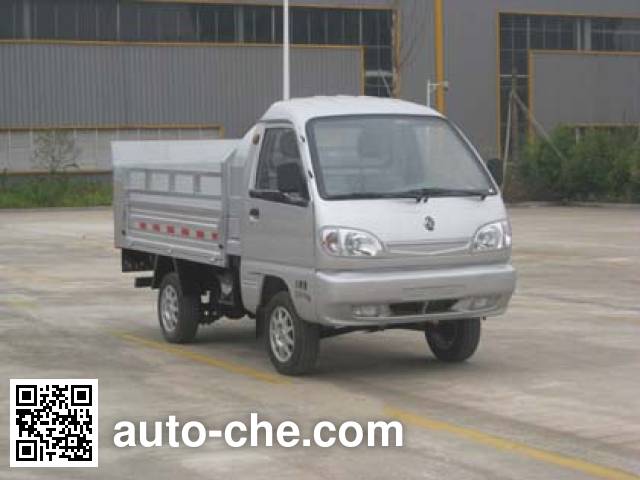

Qite JTZ5020CTYBEV Electric garbage container transport truck (#291)
Qite electric garbage container transport truck JTZ5020CTYBEV (batch #291) based on EQ1020BLEV2 chassis is made in China by Jiangxi Special Automobile Co., Ltd. The company is located in Yichun, in Jiangxi Province, China.
JTZ5020CTYBEV
Overview
| Model | JTZ5020CTYBEV |
| Brand Name |  Qite |
| Bulletin | #291 |
| Type of vehicle | Electric garbage container transport truck |
| VIN |
|
| Country of origin | China |
| Chassis | EQ1020BLEV2 |
Manufacturer Profile
| Manufacturer | Jiangxi Special Automobile Co., Ltd. |
| Brand | |
| Type of manufacturer | Special vehicle manufacturer |
| City | Yichun |
| Province (Region) | Jiangxi Province |
| Country | China |
| Number of vehicles* | 99 models (261 items total) |
| * A number of models manufactured by Jiangxi Special Automobile Co., Ltd. found in Auto-che.com vehicle database | |
Technical specifications
| # | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
|---|---|---|---|---|---|---|---|
| 1 | GLMI10A2 | cc | 10 kW | 14 hp | Shenzhen Greatland Electrics Co., Ltd. | ||
| Performance | ||||
|---|---|---|---|---|
| Fuel | only electric power (EV) | |||
| Maximum speed | 50 km/h | 32 mph | ||
| ABS | none | |||
| Capacity | ||||
|---|---|---|---|---|
| Rated load capacity | 850 kg | 0.9 t | 1,874 lbs | |
| Weights and Ground pressure | ||||
|---|---|---|---|---|
| Curb weight | 1220 kg | 1.2 t | 2,690 lbs | |
| Gross vehicle weight rating | 2200 kg | 2.2 t | 4,900 lbs | |
| Axle load distribution | 890 kg / 1310 kg 0.9 t / 1.3 t 1,962 lbs / 2,888 lbs | |||
| Dimensions | ||||
|---|---|---|---|---|
| Overall length | 4134 mm | 13′7″ | ||
| Overall width | 1535 mm | 5′1″ | ||
| Overall height | 1890 mm | 6′3″ | ||
| Undercarriage and Suspension | ||||
|---|---|---|---|---|
| Number of axles | 2 | |||
| Wheelbase | 2040 mm | 6′9″ | ||
| Front track | 1215 mm | 4′0″ | ||
| Rear track | 1210 mm | 4′0″ | ||
| Front overhang | 844 mm | 2′10″ | ||
| Rear overhang | 1250 mm | 4′2″ | ||
| Angle of approach | 26° | |||
| Angle of departure | 22° | |||
| Leaf springs | - / 5 | |||
| Tyres and Wheels | ||||
|---|---|---|---|---|
| Number of tyres | 4 | |||
| Tyres dimension | 165/70 R13 | |||
| Miscellaneous | ||||
|---|---|---|---|---|
| Seating capacity | 2 | |||
| Steering control | steering wheel | |||
Additional Information
1. Technical stages: initial stage. 2, the energy storage device type / model / manufacturer: lithium-ion battery / CA180FI / CNAC lithium (Luoyang) Limited. 3, demonstration areas: Beijing, Tianjin, Taiyuan, Jincheng, Dalian, Shanghai, Ningbo, Hefei, Wuhu City, Qingdao, Zhengzhou City, Xinxiang City, Wuhan, Xiangyang, long lines Lake Region, Guangzhou, Shenzhen, Haikou, Chengdu, Chongqing, Kunming, Xi'an, Lanzhou; Hebei urban agglomeration (Shijiazhuang (including Xinji), Tangshan, Handan, Baoding (including Dingzhou), Xingtai , Langfang, Hengshui and Cangzhou, Chengde, Zhangjiakou), Zhejiang urban agglomeration (Hangzhou, Jinhua, Shaoxing, Huzhou), cities (Fuzhou, Xiamen, Zhangzhou, Quanzhou, Sanming,
