Harbin HKC6810BEV Electric city bus (#288)

Harbin electric city bus HKC6810BEV (batch #288) is made in China by Harbin Tonglian Bus Co., Ltd. The company is located in Harbin, in Heilongjiang Province, China.

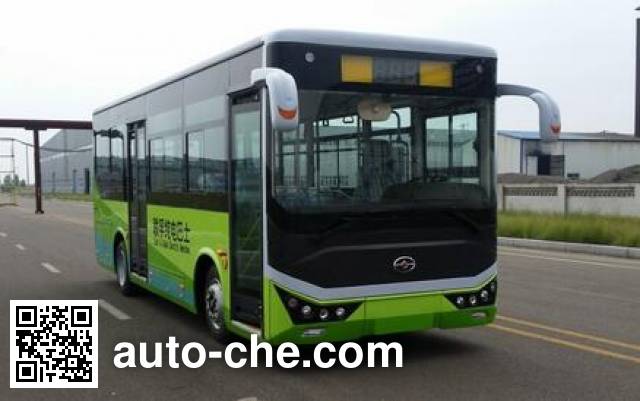

Harbin HKC6810BEV electric city bus

HKC6810BEV

Harbin HKC6810BEV electric city bus Harbin HKC6810BEV electric city bus
Overview
ModelHKC6810BEV
Brand NameHarbin
Bulletin#288
Type of vehicleElectric city bus
VIN
  • LA9B5LB1×××HK1×××
Country of originChina
Manufacturer Profile
Manufacturer
Brand
CityHarbin
Province (Region)Heilongjiang Province
CountryChina
Number of vehicles*6 models
(7 items total)
* A number of models manufactured by Harbin Tonglian Bus Co., Ltd. found in Auto-che.com vehicle database
Technical specifications
#Engine modelEngine displacementEngine powerEngine manufacturer
1O150WA cc150 kW204 hpShanghai Dajun Power Control Technology Co., Ltd.
Performance
Fuelonly electric power (EV)
Maximum speed69 km/h43 mph
ABShave
Capacity
Passenger capacity (including driver)60/11-26, 56/11-26
Weights and Ground pressure
Curb weight7500 kg,
7700 kg
7.5 t,
7.7 t
16,500 lbs,
17,000 lbs
Gross vehicle weight rating11600 kg11.6 t25,600 lbs
Axle load distribution3900 kg / 7700 kg
3.9 t / 7.7 t
8,600 lbs / 17,000 lbs
Dimensions
Overall length8100 mm26′7″
Overall width2360 mm7′9″
Overall height3060 mm / 3200 mm10′1″ / 10′6″
Undercarriage and Suspension
Number of axles2
Wheelbase4100 mm13′6″
Front track1950 mm6′5″
Rear track1800 mm5′11″
Front overhang1810 mm6′0″
Rear overhang2190 mm7′3″
Angle of approach10°
Angle of departure
Leaf springs3 / 4
Tyres and Wheels
Number of tyres6
Tyres dimension245/70R19.5
Miscellaneous
Steering controlsteering wheel
Additional Information

1. Technical stage of development, in the national sales 2. The energy storage device type / model / manufacturer: lithium iron phosphate battery / PL17185265 / Battery Technology Co., Ltd. Beijing State; 3: drive motor power rating of 90kW, peak power is 150kW; 4 fitted with speed limiting device, the speed limit 69km / h.5 equipped with ABS system, the model:. CM4XL-21VI, production enterprises: Guangzhou Municipal Bureau of automotive brake technology development Co., .6. when the optional air conditioning, a height of 3200, corresponding to the rated capacity 56 / 11-26, the curb weight of 7700kg, do not install air-conditioning, height 3060, corresponding to the rated capacity 60 / 11-26, the curb weight of 7500kg.
