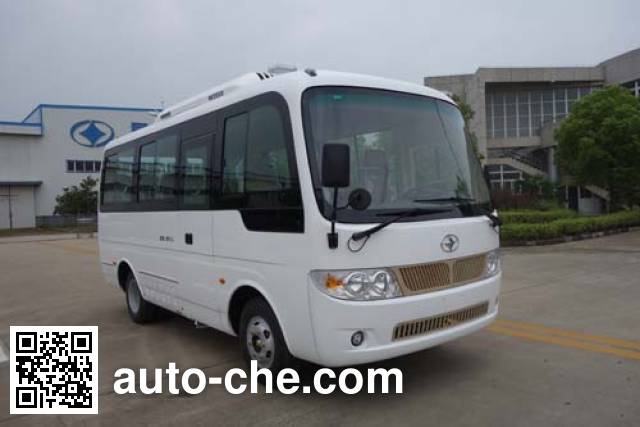

RuXingkailong HFX6600KEV05 Electric bus (#284)
Xingkailong electric bus HFX6600KEV05 (batch #284) is made in China by Anhui Xingkailong Bus Co. Ltd. The company is located in Hefei, in Anhui Province, China.
HFX6600KEV05
Overview
| Model | HFX6600KEV05 |
| Brand Name | Xingkailong |
| Bulletin | #284 |
| Type of vehicle | Electric bus |
| VIN |
|
| Country of origin | China |
Manufacturer Profile
| Manufacturer | Anhui Xingkailong Bus Co. Ltd. |
| Brand | |
| City | Hefei |
| Province (Region) | Anhui Province |
| Country | China |
| Number of vehicles* | 44 models (71 items total) |
| * A number of models manufactured by Anhui Xingkailong Bus Co. Ltd. found in Auto-che.com vehicle database | |
Technical specifications
| # | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
|---|---|---|---|---|---|---|---|
| 1 | O110WE | cc | 110 kW | 150 hp | Shanghai Dajun Power Control Technology Co., Ltd. | ||
| Performance | ||||
|---|---|---|---|---|
| Fuel | only electric power (EV) | |||
| Maximum speed | 100 km/h | 63 mph | ||
| ABS | have | |||
| Capacity | ||||
|---|---|---|---|---|
| Passenger capacity (including driver) | 10-19 | |||
| Weights and Ground pressure | ||||
|---|---|---|---|---|
| Curb weight | 5300 kg, 5100 kg | 5.3 t, 5.1 t | 11,700 lbs, 11,200 lbs | |
| Gross vehicle weight rating | 7000 kg | 7 t | 15,000 lbs | |
| Axle load distribution | 2500 kg / 4500 kg 2.5 t / 4.5 t 5,500 lbs / 9,900 lbs | |||
| Dimensions | ||||
|---|---|---|---|---|
| Overall length | 6005 mm | 19′9″ | ||
| Overall width | 2240 mm | 7′5″ | ||
| Overall height | 2970 mm / 2710 mm | 9′9″ / 8′11″ | ||
| Undercarriage and Suspension | ||||
|---|---|---|---|---|
| Number of axles | 2 | |||
| Wheelbase | 3308 mm | 10′11″ | ||
| Front track | 1850 mm | 6′1″ | ||
| Rear track | 1600 mm | 5′3″ | ||
| Front overhang | 1200 mm | 4′0″ | ||
| Rear overhang | 1497 mm | 4′11″ | ||
| Angle of approach | 18° | |||
| Angle of departure | 16° | |||
| Leaf springs | 11 / 10 | |||
| Tyres and Wheels | ||||
|---|---|---|---|---|
| Number of tyres | 6 | |||
| Tyres dimension | 7.00R16 | |||
| Miscellaneous | ||||
|---|---|---|---|---|
| Steering control | steering wheel | |||
Additional Information
1. attachments without air conditioning, the vehicle height 2710mm, curb weight is 5100kg.2. The car uses Hefei, China Xuan Tech Power Energy AG IFP20100140A iron phosphate lithium battery using the Shanghai Grand County Power Control Technology Co. O110WE drive motor and motor controller N240WSE drive motor rated power 60kw.3 optional sliding window .4 .5 car drive recorder installed with satellite positioning technology for the development phase of .6.ABS model / manufacturer:.. ABS -E4S / 4M / WABCO Vehicle control systems (China) Co., Ltd.
