Ankai Ankai HFF6629KEVB Electric bus (#283)

Ankai electric bus HFF6629KEVB (batch #283) is made in China by Anhui Ankai Automobile Co., Ltd. The company is located in Hefei, in Anhui Province, China.

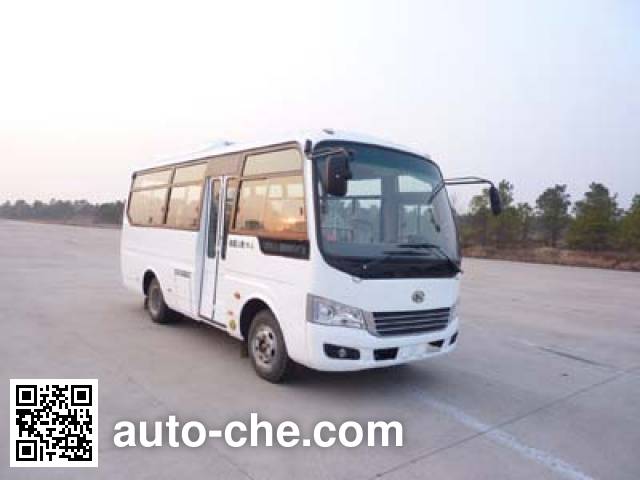

Ankai HFF6629KEVB electric bus

HFF6629KEVB

Ankai HFF6629KEVB electric bus Ankai HFF6629KEVB electric bus Ankai HFF6629KEVB electric bus
Ankai logo Overview
ModelHFF6629KEVB
Brand NameAnkai logoAnkai
Bulletin#283
Type of vehicleElectric bus
VIN
  • LA81R1DT×××××××××
Country of originChina
Manufacturer Profile
Manufacturer
Brands
Type of manufacturerAutomobile manufacturer
CityHefei
Province (Region)Anhui Province
CountryChina
Number of vehicles*787 models
(1987 items total)
* A number of models manufactured by Anhui Ankai Automobile Co., Ltd. found in Auto-che.com vehicle database
Ankai logo Technical specifications
#Engine modelEngine displacementEngine powerEngine manufacturer
1TZ260XSAK5 cc120 kW164 hpAnhui JEE Automation Equipment Co., Ltd.
Performance
Fuelelectricity
Maximum speed100 km/h63 mph
ABShave
Capacity
Passenger capacity (including driver)10-19
Weights and Ground pressure
Curb weight4650 kg,
4820 kg
4.7 t,
4.8 t
10,251 lbs,
10,626 lbs
Gross vehicle weight rating6500 kg6.5 t14,300 lbs
Axle load distribution2400 kg / 4100 kg
2.4 t / 4.1 t
5,300 lbs / 9,000 lbs
Dimensions
Overall length6190 mm20′4″
Overall width2250 mm7′5″
Overall height2795 mm / 2995 mm9′3″ / 9′10″
Undercarriage and Suspension
Number of axles2
Wheelbase3300 mm10′10″
Front track1810 mm,
1850 mm
6′0″,
6′1″
Rear track1600 mm5′3″
Front overhang1190 mm3′11″
Rear overhang1700 mm5′7″
Angle of approach16°
Angle of departure15°
Leaf springs3 / 4
Tyres and Wheels
Number of tyres6
Tyres dimension7.00R16, 215/75R17.5
Miscellaneous
Steering controlsteering wheel
Additional Information

1. cancel car air conditioning, car corresponding height of 2795mm, curb weight is 4650kg;. 2 optional new rear-view mirror, placed outside the door, closed side windows, other types of doors; 3.ABS system model / manufacturer: CM4XL-4S / 4M / Guangzhou Bureau of automotive electronic control technology Co., Ltd; 4 should be installed drive recorder has a satellite positioning function; 5 has an external charging device; 6 stages of technology products:... the development period; 7. The energy storage device type / manufacturer: lithium iron phosphate battery / Shenzhen Topband Ltd.; 8 drive motor manufacturer / model / rated power / peak power: Anhui JEE automation equipment Co., Ltd. / TZ260XSAK5 / 60kW / 120kW ; 9 can be sold in the country.
