JAC JAC HFC1090P71EV1C7Z Electric truck chassis (#254)

JAC electric truck chassis HFC1090P71EV1C7Z (batch #254) is made in China by Anhui Jianghuai Automobile Co., Ltd. (JAC). The company is located in Hefei, in Anhui Province, China.

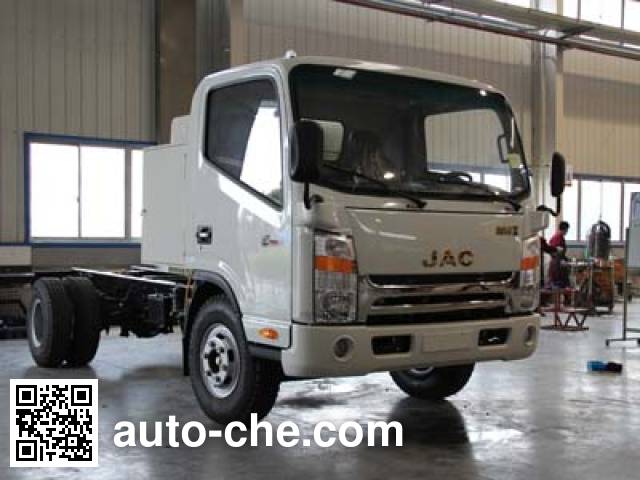

JAC HFC1090P71EV1C7Z electric truck chassis


JAC HFC1090P71EV1C7Z electric truck chassis JAC HFC1090P71EV1C7Z electric truck chassis
JAC logo Overview
Brand NameJAC logoJAC
Type of vehicleElectric truck chassis
  • LJ11KRBR×××××××××
Country of originChina
Manufacturer Profile
 Anhui Jianghuai Automobile Co., Ltd., a subsidiary of JAC Motors.
Type of manufacturerAutomobile manufacturer
Province (Region)Anhui Province
Number of vehicles*5260 models
(18444 items total)
* A number of models manufactured by Anhui Jianghuai Automobile Co., Ltd. (JAC) found in vehicle database
JAC logo Technical specifications
#Engine modelEngine displacementEngine powerEngine manufacturer
1GLMP40L0 (electric motor) cc60 kW82 hpShenzhen Greatland Electrics Co., Ltd.
Maximum speed80 km/h50 mph
Weights and Ground pressure
Curb weight3655 kg3.7 t8,058 lbs
Gross vehicle weight rating9350 kg9.4 t20,613 lbs
Axle load distribution2350 kg / 7000 kg
2.4 t / 7 t
5,181 lbs / 15,000 lbs
Overall length5575 mm18′4″
Overall width2149 mm7′1″
Overall height2222 mm7′4″
Undercarriage and Suspension
Number of axles2
Wheelbase3365 mm11′1″
Front track1670 mm5′6″
Rear track1630 mm5′5″
Front overhang1110 mm3′8″
Rear overhang1100 mm3′8″
Angle of approach22°
Angle of departure17°
Leaf springs8 / 9+7
Tyres and Wheels
Number of tyres6
Tyres dimension8.25R16 14PR
Additional Information

1. The battery is lithium iron phosphate battery, type / single nominal voltage / monomer 3 hours rated capacity / production companies are: 1865140 / 3.2V / 12.5Ah / Hefei, China Xuan Power Energy Limited; 2 drive motor. Model GLMP40L0, rated power 60kW; peak power 120kW, Company: Shenzhen earth and Electric Co., Ltd.; 3 Motor controller model is GLCP7032L4, manufacturers: Shenzhen earth and Electric Co., Ltd; 4 stages of technology products for. initial stage
