JAC JAC HFC1020PW4EV2B1D Electric truck chassis (#255)

JAC electric truck chassis HFC1020PW4EV2B1D (batch #255) is made in China by Anhui Jianghuai Automobile Co., Ltd. (JAC). The company is located in Hefei, in Anhui Province, China.

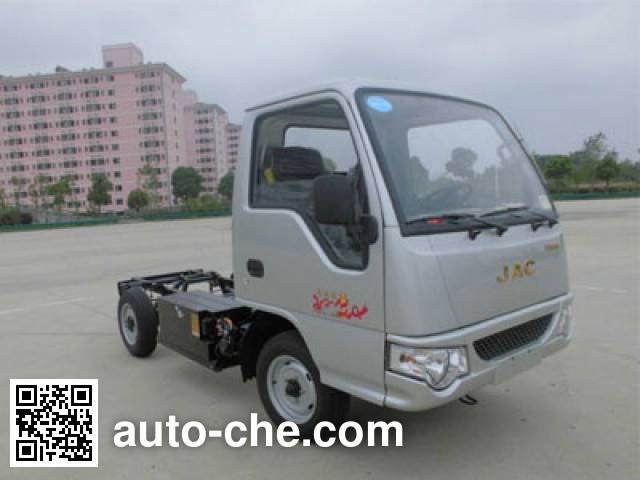

JAC HFC1020PW4EV2B1D electric truck chassis

HFC1020PW4EV2B1D

JAC HFC1020PW4EV2B1D electric truck chassis JAC HFC1020PW4EV2B1D electric truck chassis
JAC logo Overview
ModelHFC1020PW4EV2B1D
Brand NameJAC logoJAC
Bulletin#255
Type of vehicleElectric truck chassis
VIN
  • LJ11KAAP×××××××××
Country of originChina
Manufacturer Profile
Manufacturer
 Anhui Jianghuai Automobile Co., Ltd., a subsidiary of JAC Motors.
Brand
Type of manufacturerAutomobile manufacturer
CityHefei
Province (Region)Anhui Province
CountryChina
Number of vehicles*5260 models
(18444 items total)
* A number of models manufactured by Anhui Jianghuai Automobile Co., Ltd. (JAC) found in Auto-che.com vehicle database
JAC logo Technical specifications
#Engine modelEngine displacementEngine powerEngine manufacturer
1240TYZ-XS06J (electric motor) cc25 kW34 hpShanghai Electric Drive Corp.
Performance
Maximum speed80 km/h50 mph
ABSnone
Weights and Ground pressure
Curb weight1291 kg1.3 t2,846 lbs
Gross vehicle weight rating2490 kg2.5 t5,490 lbs
Axle load distribution1149 kg / 1341 kg
1.1 t / 1.3 t
2,533 lbs / 2,956 lbs
Dimensions
Overall length4350 mm14′4″
Overall width1560 mm5′2″
Overall height1960 mm6′6″
Undercarriage and Suspension
Number of axles2
Wheelbase2400 mm7′11″
Front track1300 mm4′4″
Rear track1360 mm4′6″
Front overhang980 mm3′3″
Rear overhang970 mm3′3″
Angle of approach23.7°
Angle of departure22°
Leaf springs3 / 5
Tyres and Wheels
Number of tyres4
Tyres dimension175R14 8PR
Additional Information

1. The battery is lithium iron phosphate batteries, model / monomer Nominal voltage / monomer 3 hours rated capacity / production companies are: IFP1865140A-12.5 / 3.2V / 12.5Ah / Hefei, China Xuan Tech Power Energy AG; 2 The drive motor model 240TYZ-XS06J, rated power 25kW; peak power 50kW, Company: Shanghai Co., Ltd. electric drive; 3 motor controller model is 32S25X02AT, manufacturers: Shanghai Co., Ltd. electric drive; 4 products. technical stage is the initial stage
