Wuling Wuling GL6603BEV Electric city bus (#291)

Wuling electric city bus GL6603BEV (batch #291) is made in China by Guilin Bus Industrial Group Co., Ltd. The company is located in Guilin, in Guangxi Zhuang Autonomous Region, China.

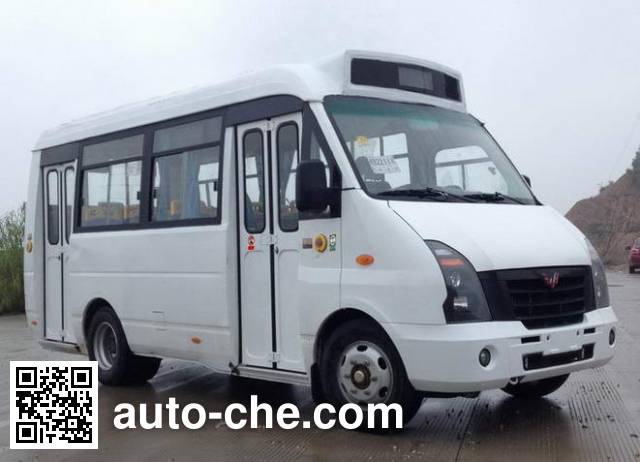

Wuling GL6603BEV electric city bus

GL6603BEV

Wuling GL6603BEV electric city bus Wuling GL6603BEV electric city bus Wuling GL6603BEV electric city bus
Wuling logo Overview
ModelGL6603BEV
Brand NameWuling logoWuling
Bulletin#291
Type of vehicleElectric city bus
VIN
  • LGLCB3E2×××××××××
Country of originChina
Manufacturer Profile
Manufacturer
Brands
Type of manufacturerBus manufacturer
CityGuilin
Province (Region)Guangxi Zhuang Autonomous Region
CountryChina
Number of vehicles*238 models
(683 items total)
* A number of models manufactured by Guilin Bus Industrial Group Co., Ltd. found in Auto-che.com vehicle database
Wuling logo Technical specifications
#Engine modelEngine displacementEngine powerEngine manufacturer
1W210300025 cc130 kW177 hpLiuzhou Wuling Automobile Industry Co., Ltd.
Performance
Fuelonly electric power (EV)
Maximum speed69 km/h43 mph
ABShave
Capacity
Passenger capacity (including driver)32/10
Weights and Ground pressure
Curb weight3460 kg3.5 t7,628 lbs
Gross vehicle weight rating5700 kg5.7 t12,600 lbs
Axle load distribution2000 kg / 3700 kg
2 t / 3.7 t
4,000 lbs / 8,200 lbs
Dimensions
Overall length6005 mm19′9″
Overall width2098 mm6′11″
Overall height2645 mm / 2735 mm / 2765 mm8′9″ / 9′0″ / 9′1″
Undercarriage and Suspension
Number of axles2
Wheelbase3310 mm10′11″
Front track1763 mm5′10″
Rear track1580 mm5′3″
Front overhang880 mm2′11″
Rear overhang1815 mm6′0″
Angle of approach24°
Angle of departure10.5°
Leaf springs- / 3
Tyres and Wheels
Number of tyres6
Tyres dimension6.50R16LT
Miscellaneous
Steering controlsteering wheel
Additional Information

The car has OBD; installation of speed limiting device; optional tachograph has a satellite positioning functions; optional different color appearance headlights, front fog lights, brake lights, placed outside the door, the other structure type side window, camera monitoring systems, different appearance of wheel trim cover; optional double sunroof different sizes 2765,2735mm; ABS company: Guangzhou Bureau of automotive electronic control technology Co., Ltd., Model: CM4XL-4S / 4K (4S / 4M); power battery type, manufacturer, model: lithium iron phosphate batteries, Dongguan Maike new energy Co., Ltd., MC-LFP5.0Ah; drive motor is rated at 85kW, peak power of 130kW; external charging; technological stage "of development "; sales: sales in the country
