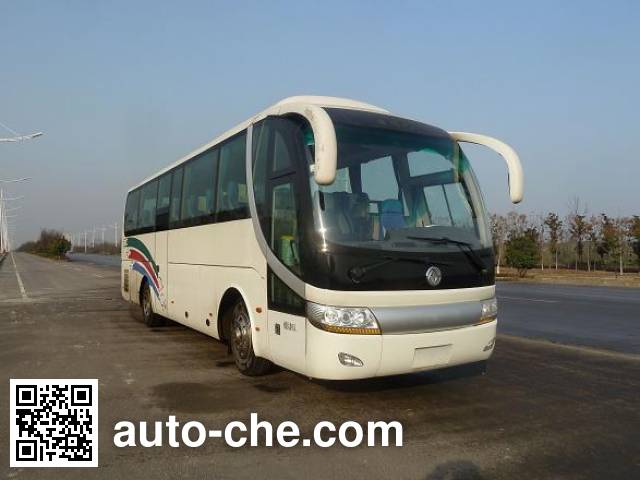

Dongfeng EQ6100LACBEV Electric bus (#286)
Dongfeng electric bus EQ6100LACBEV (batch #286) based on EQ6100KRACEV chassis is made in China by Dongfeng Motor Corporation. The company is located in Wuhan, in Hubei Province, China.
EQ6100LACBEV
Overview
| Model | EQ6100LACBEV |
| Brand Name |  Dongfeng |
| Bulletin | #286 |
| Type of vehicle | Electric bus |
| VIN |
|
| Country of origin | China |
| Chassis | EQ6100KRACEV |
Manufacturer Profile
| Manufacturer | Dongfeng Motor Corporation |
| A subsidiary of DFM (Dongfeng Motor Corporation). | |
| Brands | |
| Type of manufacturer | Automobile manufacturer |
| City | Wuhan |
| Province (Region) | Hubei Province |
| Country | China |
| Number of vehicles* | 2546 models (6259 items total) |
| * A number of models manufactured by Dongfeng Motor Corporation found in Auto-che.com vehicle database | |
Technical specifications
| # | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
|---|---|---|---|---|---|---|---|
| 1 | TZ365XSHK2 | cc | 150 kW | 204 hp | Wuhan Kang Power Technology Co., Ltd (Hiconics) | ||
| Performance | ||||
|---|---|---|---|---|
| Fuel | only electric power (EV) | |||
| Maximum speed | 100 km/h | 63 mph | ||
| ABS | have | |||
| Capacity | ||||
|---|---|---|---|---|
| Passenger capacity (including driver) | 24-45 | |||
| Weights and Ground pressure | ||||
|---|---|---|---|---|
| Curb weight | 11400 kg, 11600 kg | 11.4 t, 11.6 t | 25,100 lbs, 25,600 lbs | |
| Gross vehicle weight rating | 16500 kg | 16.5 t | 36,400 lbs | |
| Axle load distribution | 6000 kg / 10500 kg 6 t / 10.5 t 13,000 lbs / 23,100 lbs | |||
| Dimensions | ||||
|---|---|---|---|---|
| Overall length | 10480 mm | 34′5″ | ||
| Overall width | 2484 mm | 8′2″ | ||
| Overall height | 3200 mm / 3400 mm | 10′6″ / 11′2″ | ||
| Undercarriage and Suspension | ||||
|---|---|---|---|---|
| Number of axles | 2 | |||
| Wheelbase | 5100 mm | 16′9″ | ||
| Front track | 2020 mm | 6′8″ | ||
| Rear track | 1860 mm | 6′2″ | ||
| Front overhang | 2220 mm | 7′4″ | ||
| Rear overhang | 3160 mm | 10′5″ | ||
| Angle of approach | 11° | |||
| Angle of departure | 8° | |||
| Leaf springs | 3 / 4 | |||
| Tyres and Wheels | ||||
|---|---|---|---|---|
| Number of tyres | 6 | |||
| Tyres dimension | 11R22.5, 10.00R20 | |||
| Miscellaneous | ||||
|---|---|---|---|---|
| Steering control | steering wheel | |||
Additional Information
1, new energy technology products phases: development period; 2, the energy storage device type / Manufacturer: lithium iron phosphate battery / Huizhou billion Wei Li Co., Ltd.; 3, optional air conditioning, corresponding to the vehicle height 3400mm, corresponding to Curb Weight 11600kg 6, the car equipped with satellite positioning; Guangzhou Municipal Bureau of automotive brake technology development Co., Ltd.:;; 4, driving motor rated power:: 115KW, the peak power of 150kW 5, ABS Model: CM4XL-4S / 4M, ABS manufacturer function tachograph.
