Dongfeng Dongfeng EQ1020TACEVJ13 Electric truck chassis (#286)

Dongfeng electric truck chassis EQ1020TACEVJ13 (batch #286) is made in China by Dongfeng Motor Corporation. The company is located in Wuhan, in Hubei Province, China.

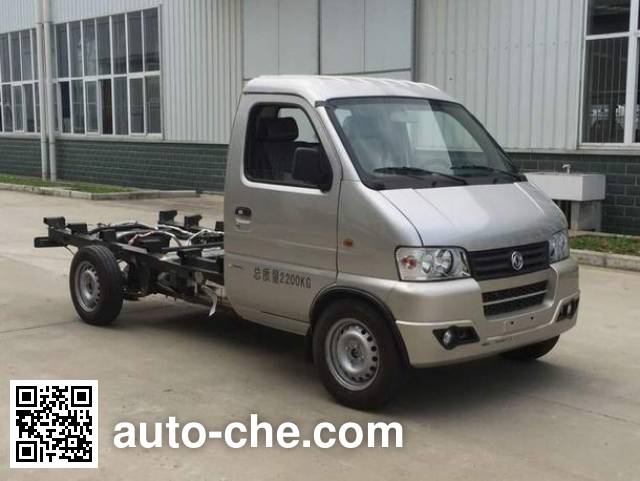

Dongfeng EQ1020TACEVJ13 electric truck chassis

EQ1020TACEVJ13

Dongfeng EQ1020TACEVJ13 electric truck chassis Dongfeng EQ1020TACEVJ13 electric truck chassis
Dongfeng logo Overview
ModelEQ1020TACEVJ13
Brand NameDongfeng logoDongfeng
Bulletin#286
Type of vehicleElectric truck chassis
VIN
  • LDPGAAAB×××××××××
Country of originChina
Manufacturer Profile
Manufacturer
 A subsidiary of DFM (Dongfeng Motor Corporation).
Brands
Type of manufacturerAutomobile manufacturer
CityWuhan
Province (Region)Hubei Province
CountryChina
Number of vehicles*2546 models
(6259 items total)
* A number of models manufactured by Dongfeng Motor Corporation found in Auto-che.com vehicle database
Dongfeng logo Technical specifications
#Engine modelEngine displacementEngine powerEngine manufacturer
1TZ205XFDM20A cc40 kW55 hpZhejiang Founder Motor Co., Ltd.
Performance
Fuelonly electric power (EV)
Maximum speed85 km/h53 mph
ABSnone
Weights and Ground pressure
Curb weight1150 kg1.2 t2,535 lbs
Gross vehicle weight rating2200 kg2.2 t4,900 lbs
Axle load distribution980 kg / 1220 kg
1 t / 1.2 t
2,161 lbs / 2,690 lbs
Dimensions
Overall length4480 mm14′9″
Overall width1620 mm5′4″
Overall height1900 mm6′3″
Undercarriage and Suspension
Number of axles2
Wheelbase2900 mm9′7″
Front track1430 mm4′9″
Rear track1420 mm4′8″
Front overhang540 mm1′10″
Rear overhang1040 mm3′5″
Angle of approach30°
Angle of departure22°
Leaf springs- / 6
Tyres and Wheels
Number of tyres4
Tyres dimension165R14LT 6PR
Miscellaneous
Seating capacity2
Steering controlsteering wheel
Additional Information

1, new energy technology products phases: development period; 2, the energy storage device type / manufacturer: Lithium manganese lithium-ion / Star Constant Power Co., Ltd; 3, motor TZ205XFDM20A rated at 20kW.
