CSR CSR CSR6110GSEV1 Electric city bus (#287)

CSR electric city bus CSR6110GSEV1 (batch #287) is made in China by Zhejiang CSR Tramways Co., Ltd. The company is located in Ningbo, in Zhejiang Province, China.

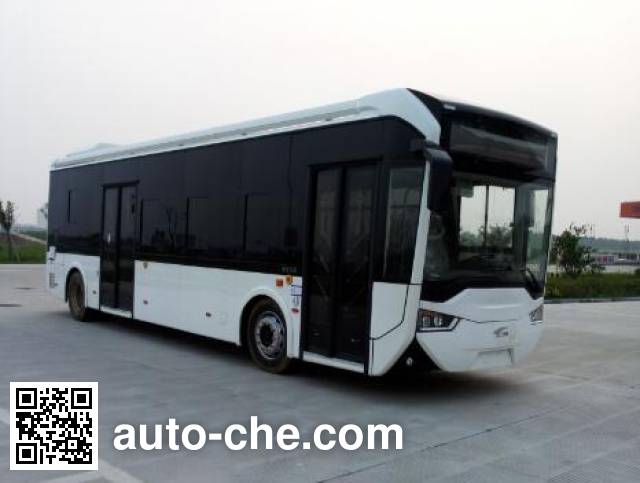

CSR CSR6110GSEV1 electric city bus

CSR6110GSEV1

CSR CSR6110GSEV1 electric city bus CSR CSR6110GSEV1 electric city bus
CSR logo Overview
ModelCSR6110GSEV1
Brand NameCSR logoCSR
Bulletin#287
Type of vehicleElectric city bus
VIN
  • LNE4CC3L×××××××××
Country of originChina
Manufacturer Profile
Manufacturer
Brands
CityNingbo
Province (Region)Zhejiang Province
CountryChina
Number of vehicles*58 models
(59 items total)
* A number of models manufactured by Zhejiang CSR Tramways Co., Ltd. found in Auto-che.com vehicle database
CSR logo Technical specifications
#Engine modelEngine displacementEngine powerEngine manufacturer
1TZ400XS02 cc80 kW109 hpZhejiang CSR Tramways Co., Ltd.
Performance
Fuelonly electric power (EV)
Maximum speed69 km/h43 mph
ABShave
Capacity
Passenger capacity (including driver)73/10-31
Weights and Ground pressure
Curb weight11500 kg11.5 t25,400 lbs
Gross vehicle weight rating17000 kg17 t37,000 lbs
Axle load distribution6310 kg / 10690 kg
6.3 t / 10.7 t
13,911 lbs / 23,567 lbs
Dimensions
Overall length10505 mm34′6″
Overall width2500 mm8′3″
Overall height3535 mm11′8″
Undercarriage and Suspension
Number of axles2
Wheelbase6100 mm20′1″
Front track2100 mm6′11″
Rear track1875 mm6′2″
Front overhang2475 mm8′2″
Rear overhang1930 mm6′4″
Angle of approach
Angle of departure13°
Leaf springs- / -
Tyres and Wheels
Number of tyres6
Tyres dimension275/70 R22.5
Miscellaneous
Steering controlsteering wheel
Additional Information

Technology for the development of Phase 1 of the product; 2 energy storage device types: super-capacitors / lithium titanate batteries, super capacitor manufacturers: Ningbo car New Energy Technology Co., Ltd., lithium titanate Company: Micro-Power Systems (Huzhou) Co., Ltd; 3.ABS company: Guangzhou Bureau of automotive electronic control technology Co., Ltd., Model: CM4XL-4S / 4K (4S / 4M); 4 drive motor peak power 150kW; 5 can be sold in the country.
