Haide Haide CHD5032TYHBEV Electric road maintenance truck (#289)

Haide electric road maintenance truck CHD5032TYHBEV (batch #289) based on CHD5030EVB03 chassis is made in China by Yantai Haide Special Vehicle Co., Ltd. The company is located in Yantai, in Shandong Province, China.

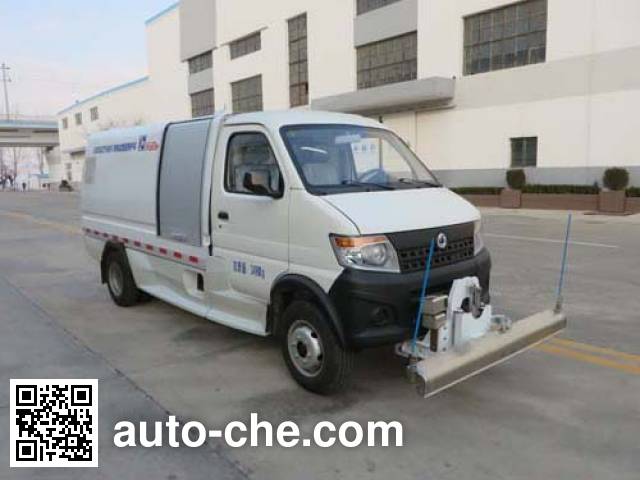

Haide CHD5032TYHBEV electric road maintenance truck

CHD5032TYHBEV

Haide CHD5032TYHBEV electric road maintenance truck Haide CHD5032TYHBEV electric road maintenance truck
Haide logo Overview
ModelCHD5032TYHBEV
Brand NameHaide logoHaide
Bulletin#289
Type of vehicleElectric road maintenance truck
VIN
  • LA9TAL43×××CHD×××
Country of originChina
ChassisCHD5030EVB03
Manufacturer Profile
Manufacturer
Brand
Type of manufacturerSpecial purpose vehicle manufacturer
CityYantai
Province (Region)Shandong Province
CountryChina
Number of vehicles*385 models
(833 items total)
* A number of models manufactured by Yantai Haide Special Vehicle Co., Ltd. found in Auto-che.com vehicle database
Haide logo Technical specifications
#Engine modelEngine displacementEngine powerEngine manufacturer
1GLMP22L2 cc30 kW41 hpShenzhen Greatland Electrics Co., Ltd.
Performance
Fuelonly electric power (EV)
Maximum speed80 km/h50 mph
ABSnone
Capacity
Rated load capacity960 kg1 t2,116 lbs
Weights and Ground pressure
Curb weight2400 kg2.4 t5,300 lbs
Gross vehicle weight rating3490 kg3.5 t7,694 lbs
Axle load distribution1160 kg / 2330 kg
1.2 t / 2.3 t
2,557 lbs / 5,137 lbs
Dimensions
Overall length5465 mm18′0″
Overall width1835 mm6′1″
Overall height2130 mm7′0″
Undercarriage and Suspension
Number of axles2
Wheelbase3300 mm10′10″
Front track1418 mm4′8″
Rear track1270 mm4′2″
Front overhang1035 mm3′5″
Rear overhang1130 mm3′9″
Angle of approach18°
Angle of departure24.5°
Leaf springs6 / 7+4
Tyres and Wheels
Number of tyres6
Tyres dimension185R14LT 6PR
Miscellaneous
Seating capacity2
Steering controlsteering wheel
Additional Information

Technical stages of a product: the development of battery type / model / manufacturer: lithium iron phosphate battery / LP2770134 / Lishen Power Battery Systems Co., Ltd.; cell voltage / capacity: 3.2V / 20Ah; nominal voltage of the battery pack assembly to 320V; motor model and production companies: GLMP22L2 / Shenzhen earth and Electric Co., Ltd; a motor controller Model and manufacturer: GLCP6026L0 / Shenzhen earth and Electric Co., Ltd; rated motor power: 30kW; peak motor: 62kW. the chassis is limited to their own use.
