Changfan CFX5021GQXEVA0 Electric cleaner truck (#290)

Changfan electric cleaner truck CFX5021GQXEVA0 (batch #290) based on CFX1020EVA1 chassis is made in China by Chongqing Changfan New Energy Automobile Co., Ltd. The company is located in Zhongqing, in Chongqing Municipality, China.

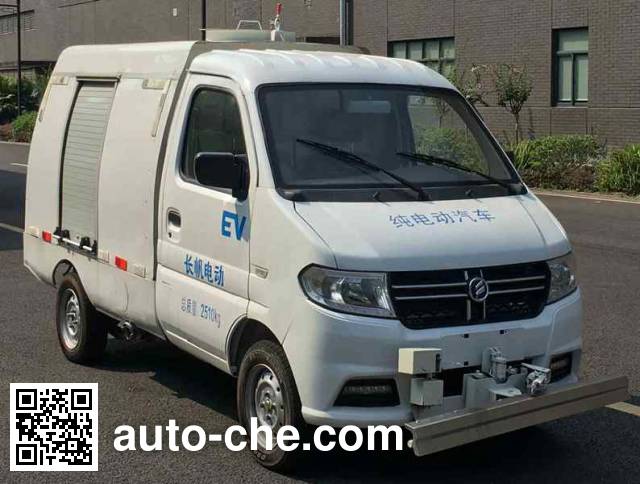

Changfan CFX5021GQXEVA0 electric cleaner truck

CFX5021GQXEVA0

Changfan CFX5021GQXEVA0 electric cleaner truck Changfan CFX5021GQXEVA0 electric cleaner truck Changfan CFX5021GQXEVA0 electric cleaner truck
Overview
ModelCFX5021GQXEVA0
Brand NameChangfan
Bulletin#290
Type of vehicleElectric cleaner truck
VIN
  • LA94FB2A×××CCJ×××
Country of originChina
ChassisCFX1020EVA1
Manufacturer Profile
Manufacturer
Brand
CityZhongqing
Province (Region)Chongqing Municipality
CountryChina
Number of vehicles*9 models
(16 items total)
* A number of models manufactured by Chongqing Changfan New Energy Automobile Co., Ltd. found in Auto-che.com vehicle database
Technical specifications
#Engine modelEngine displacementEngine powerEngine manufacturer
1HPQ10-96 cc20 kW28 hpGuangdong HEPU Power Technology Co., Ltd.
Performance
Fuelonly electric power (EV)
Maximum speed50 km/h32 mph
ABSnone
Capacity
Rated load capacity835 kg0.8 t1,841 lbs
Passenger capacity (including driver)2
Load factor (the ratio of the payload of a vehicle to its weight)0.62
Weights and Ground pressure
Curb weight1545 kg1.5 t3,406 lbs
Gross vehicle weight rating2510 kg2.5 t5,534 lbs
Axle load distribution1170 kg / 1340 kg
1.2 t / 1.3 t
2,579 lbs / 2,954 lbs
Dimensions
Overall length4300 mm14′2″
Overall width1500 mm5′0″
Overall height2070 mm6′10″
Undercarriage and Suspension
Number of axles2
Wheelbase2500 mm8′3″
Front track1310 mm4′4″
Rear track1310 mm4′4″
Front overhang985 mm3′3″
Rear overhang815 mm2′9″
Angle of approach13°
Angle of departure27°
Leaf springs- / 5
Tyres and Wheels
Number of tyres4
Tyres dimension165/70R13LT/165R13LT, 165/70R13LT
Miscellaneous
Steering controlsteering wheel
Additional Information

Optional: daytime running lights. Technological stage products: maturity. The country can sell. The type of energy storage device for the lead-acid batteries, manufacturers of Chongqing Wanli Battery Company.
