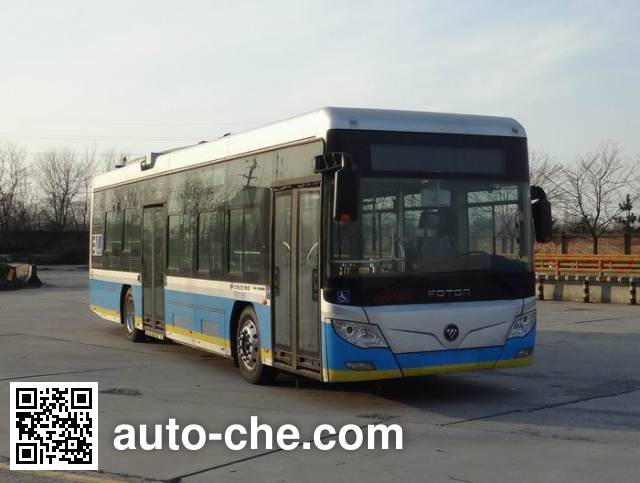

Foton BJ6123EVCAT-11 Electric city bus (#285)
Foton electric city bus BJ6123EVCAT-11 (batch #285) is made in China by Beiqi Foton Motor Co., Ltd. The company is located in Beijing, in Beijing Municipality, China.
BJ6123EVCAT-11
Overview
| Model | BJ6123EVCAT-11 |
| Brand Name |  Foton |
| Bulletin | #285 |
| Type of vehicle | Electric city bus |
| VIN |
|
| Country of origin | China |
Manufacturer Profile
| Manufacturer | Beiqi Foton Motor Co., Ltd. |
| A subsidiary of Beijing Automotive Industry Holding Co., Ltd. | |
| Brands | |
| Type of manufacturer | Automobile manufacturer |
| City | Beijing |
| Province (Region) | Beijing Municipality |
| Country | China |
| Number of vehicles* | 10701 models (38870 items total) |
| * A number of models manufactured by Beiqi Foton Motor Co., Ltd. found in Auto-che.com vehicle database | |
Technical specifications
| # | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
|---|---|---|---|---|---|---|---|
| 1 | FTTB115/FTTB115 | cc | 150 / 150 kW | Beiqi Foton Motor Co., Ltd. | |||
| Performance | ||||
|---|---|---|---|---|
| Fuel | only electric power (EV) | |||
| Maximum speed | 69 km/h | 43 mph | ||
| ABS | have | |||
| Capacity | ||||
|---|---|---|---|---|
| Passenger capacity (including driver) | 80/10-42, 75/10-42, 69/10-42 | |||
| Weights and Ground pressure | ||||
|---|---|---|---|---|
| Curb weight | 12750 kg, 13100 kg, 13500 kg | 12.8 t, 13.1 t, 13.5 t | 28,109 lbs, 28,900 lbs, 29,800 lbs | |
| Gross vehicle weight rating | 18000 kg | 18 t | 40,000 lbs | |
| Axle load distribution | 6500 kg / 11500 kg 6.5 t / 11.5 t 14,300 lbs / 25,400 lbs | |||
| Dimensions | ||||
|---|---|---|---|---|
| Overall length | 12000 mm | 39′5″ | ||
| Overall width | 2550 mm | 8′5″ | ||
| Overall height | 3650 mm | 12′0″ | ||
| Undercarriage and Suspension | ||||
|---|---|---|---|---|
| Number of axles | 2 | |||
| Wheelbase | 5900 mm | 19′5″ | ||
| Front track | 2098 mm, 2060 mm, 2156 mm | 6′11″, 6′10″, 7′1″ | ||
| Rear track | 1860 mm, 1840 mm, 1880 mm | 6′2″, 6′1″, 6′3″ | ||
| Front overhang | 2670 mm | 8′10″ | ||
| Rear overhang | 3430 mm | 11′4″ | ||
| Angle of approach | 7° | |||
| Angle of departure | 7° | |||
| Leaf springs | - / - | |||
| Tyres and Wheels | ||||
|---|---|---|---|---|
| Number of tyres | 6 | |||
| Tyres dimension | 305/70R22.5 | |||
| Miscellaneous | ||||
|---|---|---|---|---|
| Steering control | steering wheel | |||
Additional Information
1. Vehicle optional air conditioning, curb weight is 12750kg when the rated capacity of 80 / 10-42, the curb weight is 13100kg when the rated capacity of 75 / 10-42, the curb weight is 13500kg rated passenger 69 / . .3 10-42.2 allow external power poles set only in the charging station to cancel the use of front fog .4 .5 energy storage device type / manufacturer:... the lithium titanate battery / micro power systems (Huzhou) Ltd .6 models technological stage: development period; 7 three additional optional rear-view mirror of the vehicle should be installed .8 ABS, ABS system model ABS-E, manufacturer of WABCO vehicle control systems. (China) Co., Ltd. .9 The power grid to cancel the battery compartment.
