Chengzhi BCF5030XJH Ambulance (#255)

Chengzhi ambulance BCF5030XJH (batch #255) based on FA5033XXY chassis (Fujian Benz Automotive Co., Ltd. (formely Fujian Daimler Automotive Co., Ltd.) - a joint venture between Daimler AG (Germany), Fujian Motors Group (China) and China Motor Corporation (Taiwan), China) is made in China by Beijing Chengzhi Beifen Electrical Technology Co., Ltd. The company is located in Beijing, in Beijing Municipality, China.

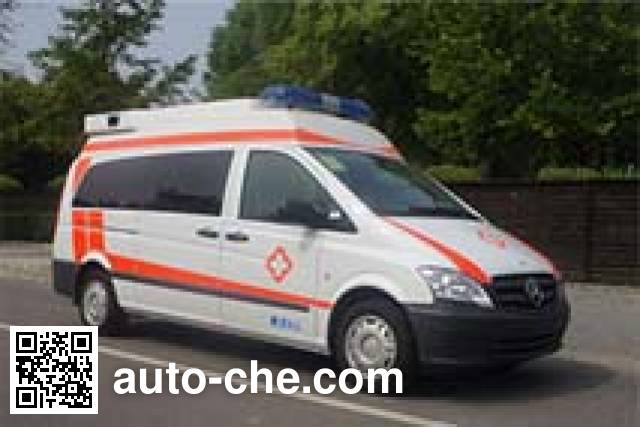

Chengzhi BCF5030XJH ambulance

BCF5030XJH

Chengzhi BCF5030XJH ambulance Chengzhi BCF5030XJH ambulance Chengzhi BCF5030XJH ambulance
Overview
ModelBCF5030XJH
Brand NameChengzhi
Bulletin#255
Type of vehicleAmbulance
VIN
  • LB1YA7B3×××××××××
Country of originChina
ChassisFA5033XXY
 Fujian Benz Automotive Co., Ltd. (formely Fujian Daimler Automotive Co., Ltd.) - a joint venture between Daimler AG (Germany), Fujian Motors Group (China) and China Motor Corporation (Taiwan), China
Manufacturer Profile
Manufacturer
Brand
Type of manufacturerMachinery manufacturer
CityBeijing
Province (Region)Beijing Municipality
CountryChina
Number of vehicles*65 models
(88 items total)
* A number of models manufactured by Beijing Chengzhi Beifen Electrical Technology Co., Ltd. found in Auto-che.com vehicle database
Technical specifications
#Engine modelEngine displacementEngine powerEngine manufacturer
12996 cc3.0 L183 cu in165 kW225 hp
Performance
Fuelgasoline
Environmental standardNational IV / Euro 4
Maximum speed190 km/h119 mph
ABShave
Capacity
Passenger capacity (including driver)4-6
Weights and Ground pressure
Curb weight2460 kg2.5 t5,423 lbs
Gross vehicle weight rating3100 kg3.1 t6,800 lbs
Axle load distribution1550 kg / 1550 kg
1.6 t / 1.6 t
3,417 lbs / 3,417 lbs
Dimensions
Overall length5223 mm17′2″
Overall width1901 mm6′3″
Overall height2042 mm / 2360 mm6′9″ / 7′9″
Undercarriage and Suspension
Number of axles2
Wheelbase3430 mm11′4″
Front track1630 mm5′5″
Rear track1630 mm5′5″
Front overhang783 mm2′7″
Rear overhang1010 mm3′4″
Angle of approach18°
Angle of departure13°
Leaf springs- / -
Tyres and Wheels
Number of tyres4
Tyres dimension205/65R16, 225/55R17
Miscellaneous
Steering controlsteering wheel
Additional Information

With OBD; ABS Manufacturer: Bosch Automotive Products (Suzhou) Co., Ltd., ABS Model: ESP8; special equipment: light disinfection, oxygen bottles, litter and so on; special functions: medical care; the roof with front mounting aid identification lamps; with the original When the optional topping, vehicle height 2042mm; car optional xenon headlights, sunroof, DVD, navigation system, power sliding doors, 225 / 55R17 tires, hoops; when the optional high roof, vehicle height 2360mm
