Yutong Yutong YTZ5170TXSZ1BEV Electric street sweeper truck (#287)

Yutong electric street sweeper truck YTZ5170TXSZ1BEV (batch #287) based on YTZ5170P01BEV chassis is made in China by Zhengzhou Yutong Heavy Industries Co., Ltd. The company is located in Zhengzhou, in Henan Province, China.

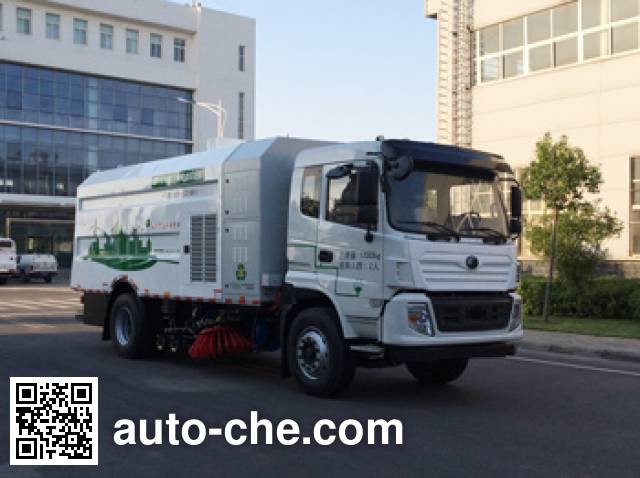

Yutong YTZ5170TXSZ1BEV electric street sweeper truck

YTZ5170TXSZ1BEV

Yutong YTZ5170TXSZ1BEV electric street sweeper truck Yutong YTZ5170TXSZ1BEV electric street sweeper truck Yutong YTZ5170TXSZ1BEV electric street sweeper truck
Yutong logo Overview
ModelYTZ5170TXSZ1BEV
Brand NameYutong logoYutong
Bulletin#287
Type of vehicleElectric street sweeper truck
VIN
  • LC9ZT51F×××YTZ×××
Country of originChina
ChassisYTZ5170P01BEV
Manufacturer Profile
Manufacturer
Brand
Type of manufacturerAutomobile manufacturer
CityZhengzhou
Province (Region)Henan Province
CountryChina
Number of vehicles*349 models
(1170 items total)
* A number of models manufactured by Zhengzhou Yutong Heavy Industries Co., Ltd. found in Auto-che.com vehicle database
Yutong logo Technical specifications
#Engine modelEngine displacementEngine powerEngine manufacturer
1YTM280-CV4-H cc100 kW136 hpZhengzhou Yutong Bus Co., Ltd.
Performance
Fuelonly electric power (EV)
Maximum speed85 km/h53 mph
ABShave
Capacity
Rated load capacity4420 kg4.4 t9,744 lbs
Weights and Ground pressure
Curb weight12450 kg12.5 t27,448 lbs
Gross vehicle weight rating17000 kg17 t37,000 lbs
Axle load distribution5500 kg / 11500 kg
5.5 t / 11.5 t
12,100 lbs / 25,400 lbs
Dimensions
Overall length8276 mm27′2″
Overall width2490 mm8′3″
Overall height3200 mm10′6″
Undercarriage and Suspension
Number of axles2
Wheelbase4500 mm14′10″
Front track1935 mm6′5″
Rear track1865 mm6′2″
Front overhang1436 mm4′9″
Rear overhang2340 mm7′9″
Angle of approach17°
Angle of departure11°
Leaf springs- / -
Tyres and Wheels
Number of tyres6
Tyres dimension295/80R22.5 16PR, 295/80R22.5 18PR
Miscellaneous
Seating capacity2
Steering controlsteering wheel
Additional Information

1, the car is a developmental period. 2, the storage device is a lithium iron phosphate battery model 48/173/170 monomer production enterprises Ningde Times New Energy Technology Co., Ltd; nominal voltage of the battery pack assembly 537.6V, assembly nominal capacity 360AH , cell voltage 3.2V. 3, the drive motor is a permanent magnet synchronous motor type, model YTM280-CV4-H, rated at 100kw, peak power of 200kw, manufacturer Zhengzhou Yutong Bus Co., Ltd., the controller model YTMC-CV4-H, manufacturers Zhengzhou Yutong bus Co., Ltd. 4, sales in the country. 5, left and right side guards and working device (nozzle, sweeping brush, etc.) interfere, replaced by a working device, it is exempt
