King Long King Long NJT5022XXYBEV Electric cargo van (#287)

King Long electric cargo van NJT5022XXYBEV (batch #287) is made in China by Nanjing Special Automobile Factory Co., Ltd. The company is located in Nanjing, in Jiangsu Province, China.

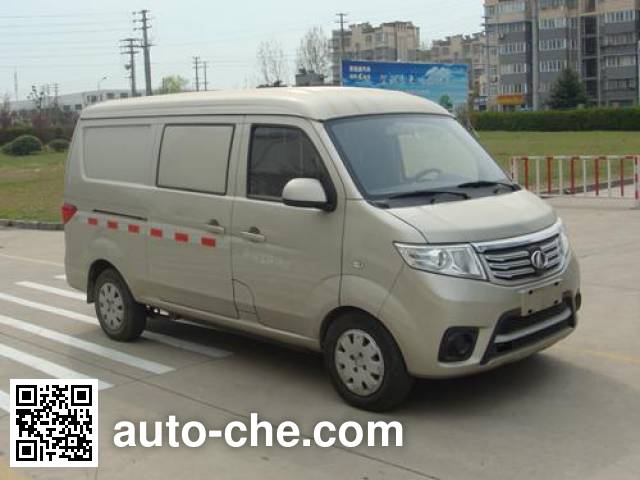

King Long NJT5022XXYBEV electric cargo van

NJT5022XXYBEV

King Long NJT5022XXYBEV electric cargo van King Long NJT5022XXYBEV electric cargo van
King Long logo Overview
ModelNJT5022XXYBEV
Brand NameKing Long logoKing Long
Bulletin#287
Type of vehicleElectric cargo van
VIN
  • LA9AXC2B×××LJA×××
Country of originChina
Manufacturer Profile
Manufacturer
Brand
CityNanjing
Province (Region)Jiangsu Province
CountryChina
Number of vehicles*73 models
(96 items total)
* A number of models manufactured by Nanjing Special Automobile Factory Co., Ltd. found in Auto-che.com vehicle database
King Long logo Technical specifications
#Engine modelEngine displacementEngine powerEngine manufacturer
1TZ210X-MFM30G01 cc55 kW75 hpShenzhen Minfuwoneng New Energy Automobile Co., Ltd.
Performance
Fuelonly electric power (EV)
Maximum speed100 km/h63 mph
ABSnone
Capacity
Rated load capacity555 kg0.6 t1,224 lbs
Weights and Ground pressure
Curb weight1365 kg1.4 t3,009 lbs
Gross vehicle weight rating2050 kg2.1 t4,519 lbs
Axle load distribution950 kg / 1100 kg
1 t / 1.1 t
2,094 lbs / 2,400 lbs
Dimensions
Overall length4110 mm13′6″
Overall width1690 mm5′7″
Overall height1930 mm6′4″
Undercarriage and Suspension
Number of axles2
Wheelbase2605 mm8′7″
Front track1425 mm4′9″
Rear track1435 mm4′9″
Front overhang655 mm2′2″
Rear overhang850 mm2′10″
Angle of approach29°
Angle of departure28°
Leaf springs- / 5
Tyres and Wheels
Number of tyres4
Tyres dimension165R13LT
Miscellaneous
Seating capacity2
Steering controlsteering wheel
Additional Information

Battery Type / Model / Manufacturer: lithium iron phosphate battery / 32650-5Ah / Wo Tema Battery Co., Ltd. of Shenzhen City; rated voltage of the battery / battery capacity: 3.2V / 5Ah; rated voltage of the battery / battery capacity: 540.8V / 45Ah; motor model and manufacturer: TZ210X-MFM30G01 / Shenzhen citizen Fouveau new energy automobile Co., Ltd.; motor controller Model and manufacturer: KTZ54X11S-MFK37G01 / Shenzhen citizen Fouveau new energy automobile Co., Ltd.; motor rated power: 30kW; peak motor power: 55kW. Technical stages: the development of; can be sold in the country.
