Zhongtong Zhongtong LCK6663EVG Electric city bus (#288)

Zhongtong electric city bus LCK6663EVG (batch #288) based on LCK6613REVG chassis is made in China by Zhongtong Bus Holding Co., Ltd. The company is located in Liaocheng, in Shandong Province, China.

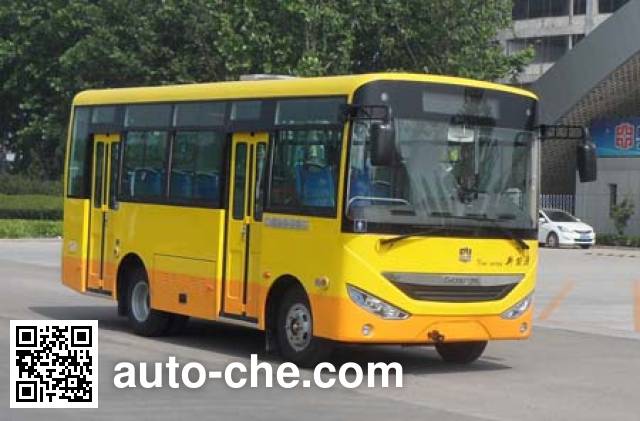

Zhongtong LCK6663EVG electric city bus

LCK6663EVG

Zhongtong LCK6663EVG electric city bus Zhongtong LCK6663EVG electric city bus Zhongtong LCK6663EVG electric city bus Zhongtong LCK6663EVG electric city bus Zhongtong LCK6663EVG electric city bus
Zhongtong logo Overview
ModelLCK6663EVG
Brand NameZhongtong logoZhongtong
Bulletin#288
Type of vehicleElectric city bus
VIN
  • LDY6GS55×××××××××
Country of originChina
ChassisLCK6613REVG
Manufacturer Profile
Manufacturer
Brands
Type of manufacturerBus manufacturer
CityLiaocheng
Province (Region)Shandong Province
CountryChina
Number of vehicles*994 models
(3419 items total)
* A number of models manufactured by Zhongtong Bus Holding Co., Ltd. found in Auto-che.com vehicle database
Zhongtong logo Technical specifications
#Engine modelEngine displacementEngine powerEngine manufacturer
1ZTM60-350 cc100 kW136 hpZhongtong Bus Holding Co., Ltd.
Performance
Fuelonly electric power (EV)
Maximum speed69 km/h43 mph
ABShave
Capacity
Passenger capacity (including driver)37/10-23, 35/10-23, 37/10-26, 35/10-26
Weights and Ground pressure
Curb weight5000 kg,
5200 kg
5 t,
5.2 t
11,000 lbs,
11,500 lbs
Gross vehicle weight rating7500 kg7.5 t16,500 lbs
Axle load distribution3000 kg / 4500 kg
3 t / 4.5 t
7,000 lbs / 9,900 lbs
Dimensions
Overall length6620 mm21′9″
Overall width2280 mm / 2250 mm7′6″ / 7′5″
Overall height2820 mm / 2920 mm / 3080 mm9′4″ / 9′7″ / 10′2″
Undercarriage and Suspension
Number of axles2
Wheelbase3300 mm10′10″
Front track1830 mm,
1860 mm
6′1″,
6′2″
Rear track1600 mm,
1610 mm
5′3″,
5′4″
Front overhang1180 mm3′11″
Rear overhang2140 mm7′1″
Angle of approach18°
Angle of departure11°
Leaf springs11 / 10, 9 / 11, 3 / 4
Tyres and Wheels
Number of tyres6
Tyres dimension7.50R16, 215/75R17.5
Miscellaneous
Steering controlsteering wheel
Additional Information

1, or cancel optional air conditioning, air-conditioned at a height of 3080mm, 2. When curb weight 5000kg, rated capacity of 37 / 10-23 or 37 / 10-26, 3. Curb weight of 5200kg, the rated capacity of 35 / 10-23 and 35 / 10-26 people; 3, optional cancel any door and a passenger with a driver door or left emergency door; 4 optional folding doors; 5 optional . the driver door, optional other forms of mirrors 6, 7 other optional shape, 8 optional other forms of post-Wai, 9 other optional forms of the side window, 10 permits external charging;... 11, kind of energy storage device / manufacturer: lithium iron phosphate battery / Hefei, China Xuan Tech power energy AG or Lishen power battery systems Co., Ltd.
