Dongfeng Dongfeng EQ1031GTEVJ3 Electric truck chassis (#282)

Dongfeng electric truck chassis EQ1031GTEVJ3 (batch #282) is made in China by Dongfeng Motor Corporation. The company is located in Wuhan, in Hubei Province, China.

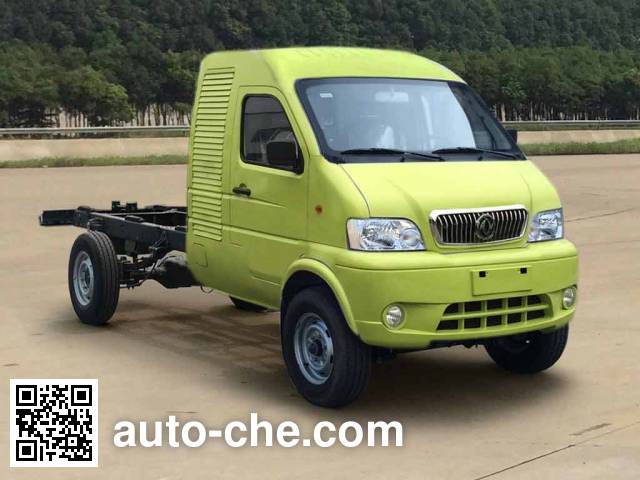

Dongfeng EQ1031GTEVJ3 electric truck chassis

EQ1031GTEVJ3

Dongfeng EQ1031GTEVJ3 electric truck chassis Dongfeng EQ1031GTEVJ3 electric truck chassis
Dongfeng logo Overview
ModelEQ1031GTEVJ3
Brand NameDongfeng logoDongfeng
Bulletin#282
Type of vehicleElectric truck chassis
VIN
  • LGHC3V1D×××××××××
Country of originChina
Manufacturer Profile
Manufacturer
 A subsidiary of DFM (Dongfeng Motor Corporation).
Brands
Type of manufacturerAutomobile manufacturer
CityWuhan
Province (Region)Hubei Province
CountryChina
Number of vehicles*2546 models
(6259 items total)
* A number of models manufactured by Dongfeng Motor Corporation found in Auto-che.com vehicle database
Dongfeng logo Technical specifications
#Engine modelEngine displacementEngine powerEngine manufacturer
1TZ240XSEA cc30 kW41 hpGuangdong Yiwei New Energy Vehicles Co., Ltd. (EVE)
Performance
Fuelonly electric power (EV)
Maximum speed85 km/h53 mph
ABSnone
Weights and Ground pressure
Curb weight1560 kg1.6 t3,439 lbs
Gross vehicle weight rating3450 kg3.5 t7,606 lbs
Axle load distribution1150 kg / 2300 kg
1.2 t / 2.3 t
2,535 lbs / 5,100 lbs
Dimensions
Overall length4800 mm15′9″
Overall width1680 mm5′7″
Overall height2100 mm6′11″
Undercarriage and Suspension
Number of axles2
Wheelbase3300 mm10′10″
Front track1400 mm4′8″
Rear track1440 mm4′9″
Front overhang575 mm1′11″
Rear overhang925 mm3′1″
Angle of approach40°
Angle of departure30°
Leaf springs6 / 6
Tyres and Wheels
Number of tyres4
Tyres dimension195R14LT
Miscellaneous
Seating capacity2
Steering controlsteering wheel
Additional Information

1, the battery type / model / manufacturer: three yuan lithium battery /3.6V2.15Ah/ Guangdong billion Wei Sainz New Energy Systems Ltd, rated voltage of the battery / battery capacity: 3.2V / 2.15Ah, rated voltage of the battery pack / battery group capacity: 540V / 92.45Ah, motor and motor controller Model and manufacturer: TZ240XSEA, KTZ54X30SEA / Guangdong Wei billion new energy automobile Co., Ltd., the motor rated power: 30kw, peak motor power: 60kw. Technical stages: the initial stage
